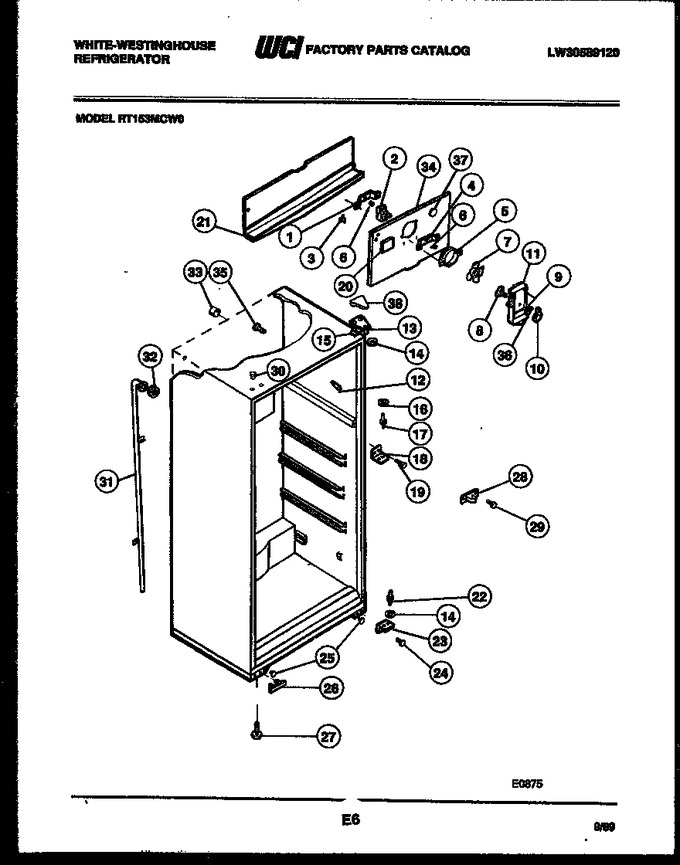

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001227		Bracket, Rear		Appelez-nous	-
2	G173301		Fan Motor		Appelez-nous	-
3	G164571		Connector Bracket		Appelez-nous	-
4	3001226		Bracket, Front		Appelez-nous	-
5	G167217		Orifice Ring		Appelez-nous	-
6	G187559		Bushing (2)				$ 48.20
7	G174705		Fan Blade		Appelez-nous	-
8	3206110		Damper				$ 53.08
9	G162662		Push Nut-damper		Appelez-nous	-
10	3206109		Knob-damper Cntrl		Appelez-nous	-
11	3206108		Fan Cover		Appelez-nous	-
12	3202337		Corner Trim-avocado		Appelez-nous	-
13	3206100		Hinge, Top		Appelez-nous	-
14	G103903		Washer, Nylon				$ 3.10
15	G183861		Shim Top Hinge		Appelez-nous	-
16	08000186		Washer-cntr Hnge		Appelez-nous	-
17	G142220		Pin		Appelez-nous	-
18	G163207		Bracket-center Hinge		Appelez-nous	-
19	3206134		Screw Hinge Mtg (2)		Appelez-nous	-
20	3018193		Plug-decorative		Appelez-nous	-
21	3206146		Drain Trough		Appelez-nous	-
22	G166505		Pin-bottom Hinge		Appelez-nous	-
23	3206136		Bracket-bttm Hinge		Appelez-nous	-
24	3206143		Screw-hinge Mtg		Appelez-nous	-
25	3206142		Plug (2)		Appelez-nous	-
26	3206135		Cover-hinge Screw		Appelez-nous	-
27	3206141		Leveling Screw (2)				$ 11.50
28	08000056		Spout-drain Tube		Appelez-nous	-
29	3001361		Pin-push		Appelez-nous	-
30	G174747-08		Button, Plug, Avocado		Appelez-nous	-
31	3206115		Tube-defrost Drain		Appelez-nous	-
32	08009755		Ring-seal		Appelez-nous	-
33	G85642		Tube, Rubber		Appelez-nous	-
34	3206119		Cover-evap Coil		Appelez-nous	-
35	G163669		Support, Coil Cover (2)		Appelez-nous	-
36	08016566		Screw		Appelez-nous	-
37	3203044		Plug-short Test Hole		Appelez-nous	-
38	3206102		Cover-top Hinge-avoc		Appelez-nous	-
*21787	08012296		Tapping Plate (2)		Appelez-nous	-
*21787	G187599		Plug-liner (6)		Appelez-nous	-
13A	G167103		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
34A	G187363		Screw		Appelez-nous	-
34B	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
5A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
