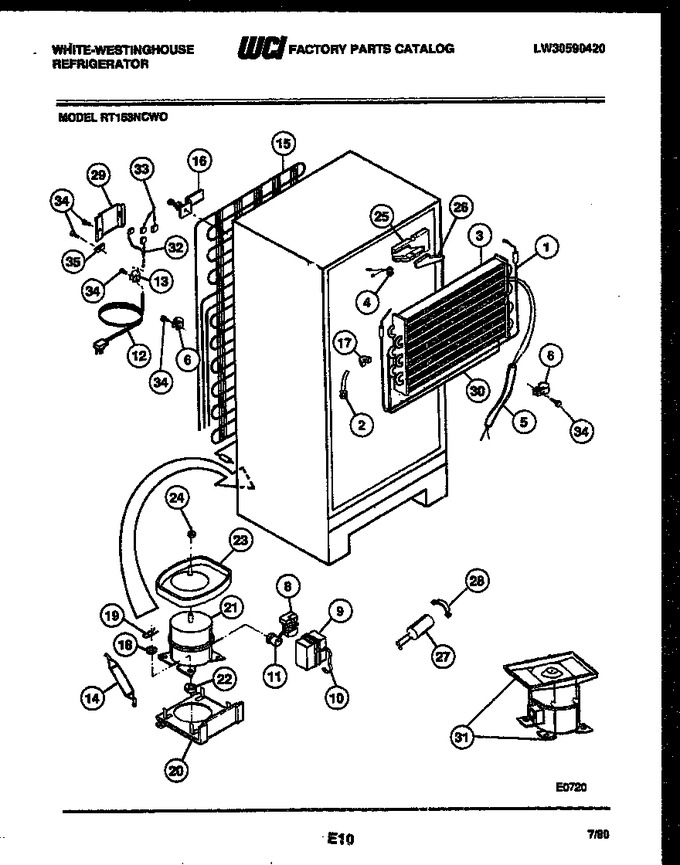

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001362 | Heater, Defrost |
|
- | |||||
| 2 | 5308000110 | Strap-heater (2) |
|
Immediately | $ 59.82 | ||||
| 3 | 5303201078 | Evaporator |
|
- | |||||
| 4 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 5 | 5303201079 | Heat Exchanger |
|
- | |||||
| 6 | 53080001333 | Clamp - Tube |
|
- | |||||
| 8 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 9 | 5303006411 | Cover, Terminal |
|
- | |||||
| 10 | 5303006412 | Strap-bale |
|
- | |||||
| 11 | 5303001713 | Overload |
|
- | |||||
| 12 | 5316254901 | Cord-service |
|
- | |||||
| 13 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 14 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 15 | 5303001341 | Condenser |
|
- | |||||
| 16 | 5303001342 | Bracket-condenser Mounting (4) |
|
- | |||||
| 17 | 5308017227 | Block Evaporator Lh |
|
- | |||||
| 18 | 5308003633 | Washer - Compressor Mounting (3) |
|
$ 35.67 | |||||
| 19 | 5308003596 | Clip - Compressor Mounting (3) |
|
$ 6.62 | |||||
| 20 | 5308009596 | Plate-compressor Mounting |
|
- | |||||
| 21 | 5303916004 | Compressor |
|
- | |||||
| 22 | 5308008778 | Grommet Compressor Mtg. |
|
- | |||||
| 23 | 5300184715 | Pan-defrost |
|
- | |||||
| 24 | 5303001348 | Nut-lock |
|
$ 2.73 | |||||
| 25 | 5308013648 | Block Evaporator Rh |
|
- | |||||
| 26 | 5303007287 | Plug - Evaporator Insulation - Rh |
|
- | |||||
| 27 | 5303018427 | Capacitor |
|
- | |||||
| 28 | 3018428 | Strap Capacitor |
|
- | |||||
| 29 | 5303001197 | Cover-wiring |
|
- | |||||
| 30 | 5316651102 | Insulator-evap |
|
$ 53.04 | |||||
| 31 | 5303916001 | Pan Retainer Kit |
|
$ 78.75 | |||||
| 32 | 5303001347 | Harness-compressor |
|
- | |||||
| 33 | 3001383 | Harness Control |
|
- | |||||
| 34 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 35 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 23A | 5308017610 | Sound Tape (non-illustrated) |
|
- | |||||
| 25A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 28A | 5300189377 | Hot Tube Repair Kit (non-illustrated) |
|
- | |||||
| 34A | 5308009617 | Washer - No. 10 Ext. Lock (non-illustrated) |
|
- | |||||
| 6A | 5308000039 | Screw |
|
- |
