SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:

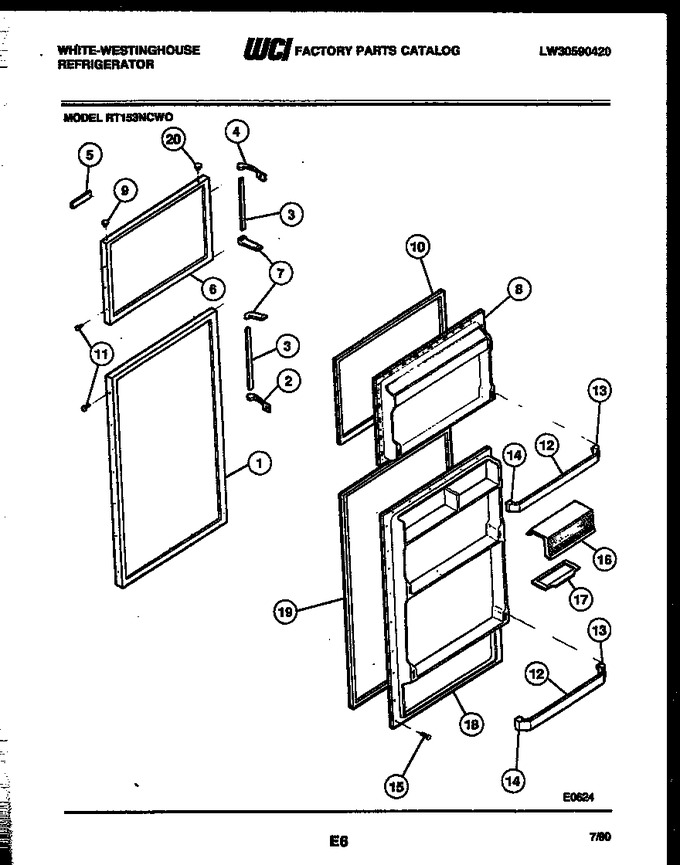

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G191901 | Panel-refrigerator-white |
|
- | |||||
| 2 | 5303001015 | End - Handle Bottom |
|
$ 74.29 | |||||
| 3 | 53175666609 | Handle - Door (2) |
|
- | |||||
| 4 | 5303001014 | End - Handle Top |
|
- | |||||
| 5 | 5300304001 | Nameplate |
|
- | |||||
| 6 | G191896 | Panel-freezer-white |
|
- | |||||
| 7 | 5303001296 | End-handle (2) |
|
$ 86.36 | |||||
| 8 | 5318646301 | Panel - Inner Freezer |
|
- | |||||
| 9 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 10 | 5303001399 | Gasket-freezer |
|
- | |||||
| 11 | 240494001 | Plug-button, White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 12 | 5349007923 | Rack - Freezer (3) |
|
- | |||||
| 13 | 5317689101 | Support-rack Rh (3) |
|
- | |||||
| 14 | 5317689201 | Support-rack Lh (3) |
|
- | |||||
| 15 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 16 | 5318641402 | Door-dairy |
|
- | |||||
| 17 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 18 | 5318646902 | Panel - Inner Refrigerator |
|
- | |||||
| 19 | 5303001398 | Gasket-refrigerator |
|
- | |||||
| 20 | 5308000134 | Plug Button-white |
|
$ 5.62 | |||||
| 17A | 5308000255 | Door Stop (2) (non-illustrated) |
|
$ 42.20 | |||||
| 3A | 5308011745 | Screw |
|
$ 10.38 |
