View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
03 - Internal Controls
04 - Oven
05 - Top Assembly
New Model Search:

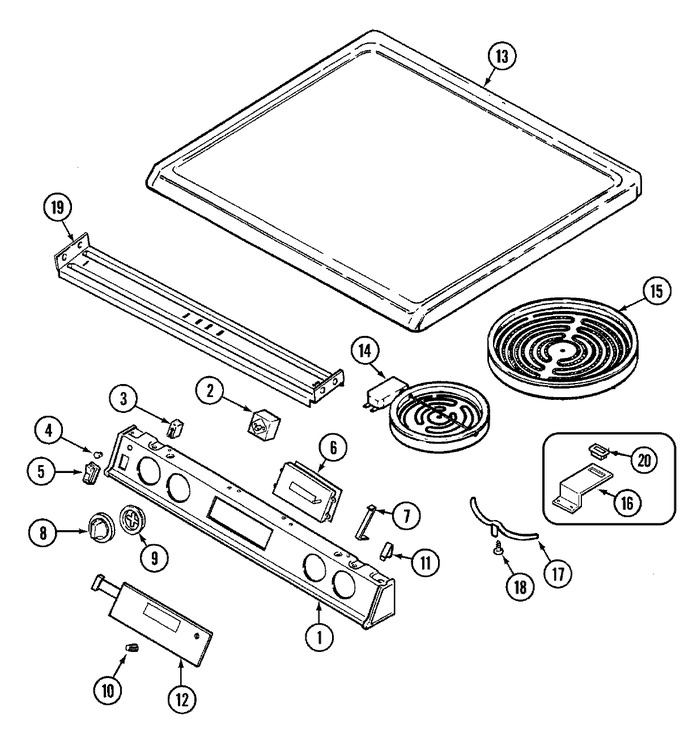

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7722P108-60 | Panel, Upper Front----na | 01 |
|
- | ||||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 05 |
|
$ 106.11 | ||||
| 3 | W10127320 | Light, Indicator | 01 |
|
- | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 05 |
|
$ 6.73 | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 6 | 7601P207-60 | Clock | 01 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 7 | 3801F222-45 | Bracket, Clock | 01 |
|
- | ||||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 01 |
|
- | ||||
| 9 | 7740P020-60 | Bezel, Knob (blk) | 01 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 11 | 7112P102-60 | Clip, Speed | 01 |
|
- | ||||
| 12 | 7740P037-60 | Switch, Membrane (blk) | 01 |
|
- | ||||
| 13 | 5706S055-84 | Top Assy. (blk Glass/alm Frm) | 01 |
|
- | ||||
| 13 | 5706S057-09 | Top Assy. (blk Glass/blk Frm) | 01 |
|
- | ||||
| 13 | 7706P301-60 | Extrusion, Filler | 01 |
|
- | ||||
| 14 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 01 |
|
Immediately | $ 309.01 | |||
| 14 | 12500041 | Limiter Kit (6``) | 01 |
|
- | ||||
| 15 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 01 |
|
Immediately | $ 316.13 | |||
| 15 | 12500040 | Limiter Kit (8``) | 01 |
|
- | ||||
| 16 | 3801F312-45 | Bracket, Indicator Light | 01 |
|
- | ||||
| 17 | 8004P015-60 | Support, Element | 01 |
|
- | ||||
| 18 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 19 | 3807F390-45 | Support, Element | 01 |
|
- | ||||
| 20 | 7407P074-60 | Light, Indicator (hot Surface) | 01 |
|
- | ||||
| 21 | 5170P138-60 | Harness, Sensor/lock | 01 |
|
- | ||||
| 21 | 5195D098-60 | Harness | 01 |
|
- | ||||
| 21 | 5175D075-60 | Harness, Cooktop To Switch | 01 |
|
- | ||||
| 21 | 5170P147-60 | Harness, Control To Relay | 01 |
|
- | ||||
| 22 | 8113P008-60 | Manual, Use & Care | 01 |
|
- | ||||
| 23 | 8112P105-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| 24 | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| 25 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
