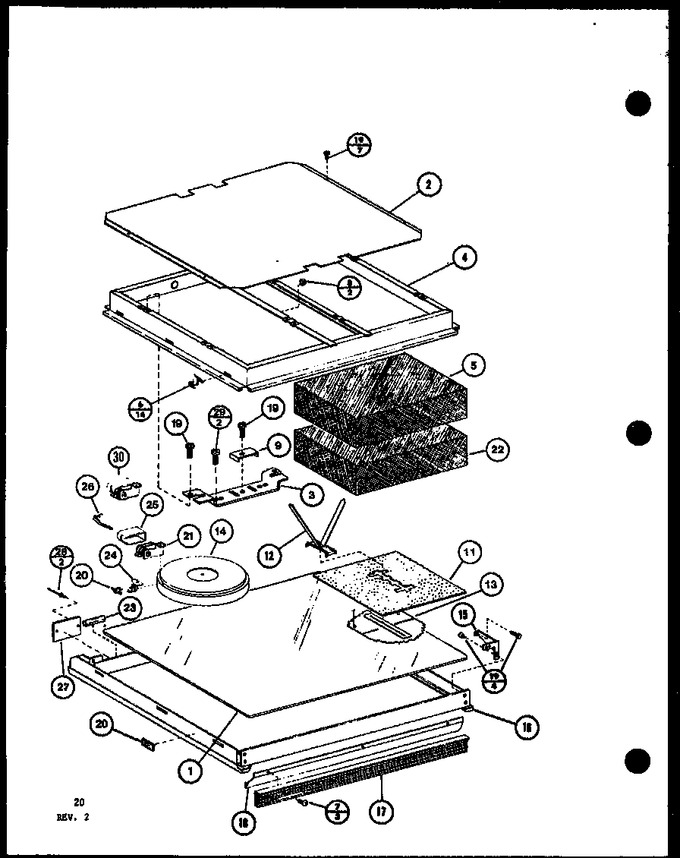

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0199321		Net-kit,heater Panel		Appelez-nous	-
2	C2704201		Cover-htr Box		Appelez-nous	-
3	C2736302		Bar Hold Down K		Appelez-nous	-
4	D8508502		Heater Box Assy		Appelez-nous	-
5	C2702203		Insulation K		Appelez-nous	-
5	C2710803		Insulation		Appelez-nous	-
5	C2710703		Insulation		Appelez-nous	-
6	B5001502		Clip		Appelez-nous	-
7	M0254518		Screw		Appelez-nous	-
8	M0110503		Clip		Appelez-nous	-
9	B5001201		Spring		Appelez-nous	-
11	C2702001		Insul-lo-con K		Appelez-nous	-
11	C2702002		Insulation Lo-con K		Appelez-nous	-
12	C2701701		Hld Down Assy		Appelez-nous	-
13	R0157502		Element Kit, Large		Appelez-nous	-
13	R0157501		Element Kit, Small		Appelez-nous	-
14	C2735901		Element		Appelez-nous	-
15	B5005801		Brkt-front L		Appelez-nous	-
15	B5005802		Brkt-front R		Appelez-nous	-
17	D8509402		Grille		Appelez-nous	-
18	C2706101		Guard		Appelez-nous	-
19	M0217224		Screw		Appelez-nous	-
20	C2735801		Switch Hot Lite		Appelez-nous	-
21	C2735703		Switch High Limit		Appelez-nous	-
22	C2710804		Insulation		Appelez-nous	-
22	C2702204		Insulation		Appelez-nous	-
22	C2710704		Insulation		Appelez-nous	-
23	M0293001		Edge Liner-ft		Appelez-nous	-
24	C2736601		Bracket Switch		Appelez-nous	-
25	C2736401		Cover		Appelez-nous	-
26	C2736501		Clip		Appelez-nous	-
27	B5029701		Terminal Board		Appelez-nous	-
28	A4539619		Pop Rivet		Appelez-nous	-
29	M0228307		Screw, Shoulder		Appelez-nous	-
NI	D8533002		Ring Top Frame		Appelez-nous	-
NI	B5718912		Gasket		Appelez-nous	-
