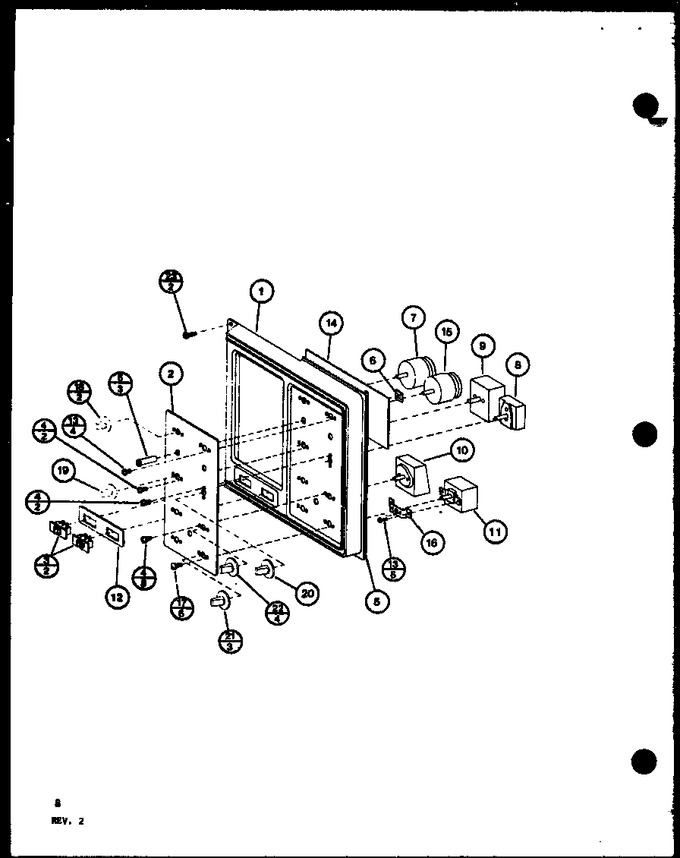

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8579401		Escutcheon Control		Appelez-nous	-
2	D8578901		Faceplate-control		Appelez-nous	-
3	C2736701		Switch, Light		Appelez-nous	-
4	M0209514		Screw		Appelez-nous	-
5	A3030339		Gasket, Foam		Appelez-nous	-
6	M0360204		Light-indicator/ W Clip		Appelez-nous	-
7	B5033101		Timer Delay/start		Appelez-nous	-
8	C2736103		Switch Selector		Appelez-nous	-
9	D8576103		Thermostat Oven		Appelez-nous	-
10	C2702710		Switch, Infinite		Appelez-nous	-
11	D8503907		Thermostat		Appelez-nous	-
12	B5033201		Plate, Cont Sw		Appelez-nous	-
13	M0209501		Screw		Appelez-nous	-
14	B5032601		Sheet Insulator		Appelez-nous	-
15	B5033102		Timer Cook/clean		Appelez-nous	-
16	B5029801		Bracket		Appelez-nous	-
17	M0232702		Screw		Appelez-nous	-
18	D8580401		Knob, Timer		Appelez-nous	-
19	D8580201		Knob, Oven Therm		Appelez-nous	-
20	C2737501		Knob Sel. Sw.		Appelez-nous	-
21	C2737503		Knob		Appelez-nous	-
22	C2737502		Knob Inf Sw		Appelez-nous	-
23	M0243318		Screw, Tf		Appelez-nous	-
