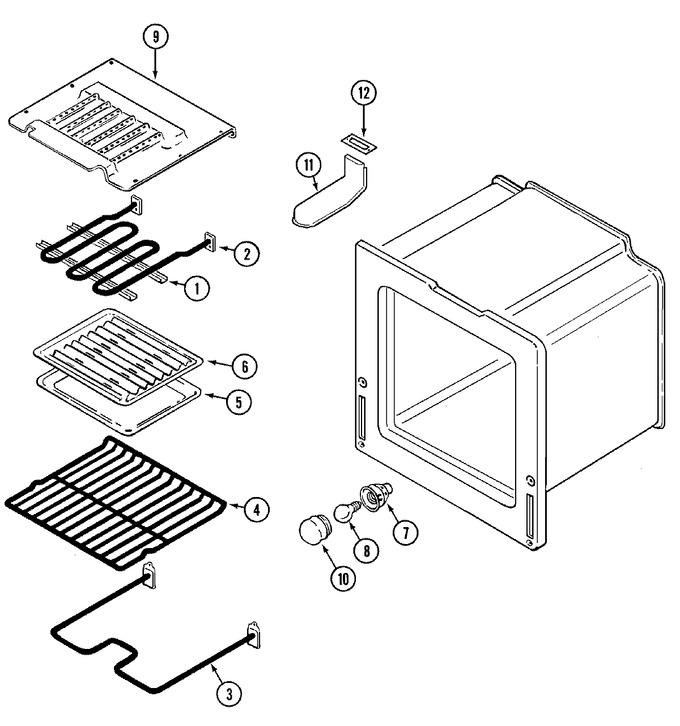

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 10 |
|
- | ||||
| 1 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 2 | WPY04000059 | Element, Broil (Replaces: 7406P065-60) | 10 |
|
$ 159.00 | ||||
| 3 | UB870 | Element, Bake (Replaces: 7406P092-60) | 10 |
|
Immediately | $ 44.96 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 10 |
|
$ 65.15 | ||||
| 5 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 7 | 74003125 | Receptacle, Bulb | 29 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 29 |
|
Immediately | $ 12.62 | |||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 9 | 3601F237-45 | Baffle, Broil | 10 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 10 |
|
Immediately | $ 71.93 | |||
| 11 | 4005F403-51 | Cover, Vent | 10 |
|
- | ||||
| 11 | 4006W112-45 | Box, Vent | 10 |
|
- | ||||
| 12 | 7201P060-60 | Gasket, Vent | 10 |
|
- |
