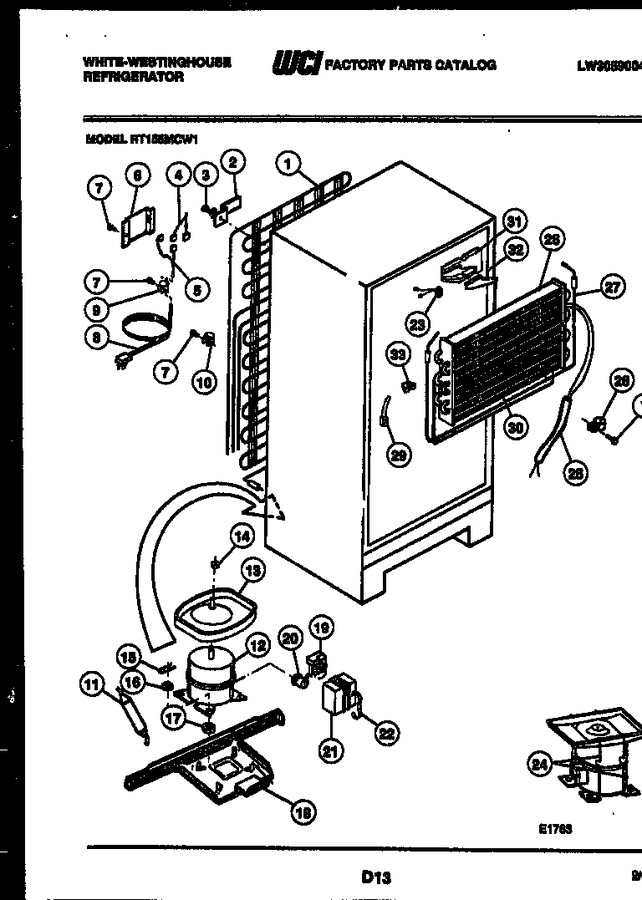

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G178225 | Condenser |
|
- | |||||
| 2 | G164637 | Bracket-condenser Mounting (4) |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | 3206127 | Wiring Harness-control |
|
- | |||||
| 5 | 3206113 | Wiring Harness-compressor |
|
- | |||||
| 6 | 3001197 | Cover, Wiring |
|
- | |||||
| 7 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 8 | G162549-01 | Service Cord |
|
- | |||||
| 9 | G27669 | Clamp-cable (5) |
|
- | |||||
| 10 | G168978 | Nylon Clamp-tube |
|
- | |||||
| 11 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 12 | 5303916020 | Compressor With Electricals |
|
- | |||||
| 13 | G184715 | Pan, Defrost |
|
- | |||||
| 14 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 15 | G163204 | Clip (3) |
|
- | |||||
| 16 | G164634 | Washer (3) |
|
- | |||||
| 17 | G177617 | Grommet (4) |
|
- | |||||
| 18 | 3206126 | Plate-compressor Mounting |
|
- | |||||
| 19 | 216594300 | Relay (Replaces: 3204486) |
|
$ 28.92 | |||||
| 20 | 3204487 | Overload |
|
- | |||||
| 21 | 3006411 | Cover-terminal |
|
- | |||||
| 22 | 3006412 | Strap-terminal Cover |
|
- | |||||
| 23 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 24 | 3916001 | Pan Retainer Kit |
|
- | |||||
| 25 | 08000728 | Heat Exchanger |
|
- | |||||
| 26 | G88088 | Clamp-exchanger |
|
- | |||||
| 27 | 08009754 | Heater-defrost |
|
- | |||||
| 28 | 08009756 | Evaporator |
|
- | |||||
| 29 | G165546 | Strap-heater/evaporator (2) |
|
- | |||||
| 30 | 5316651102 | Insulator-evaporator |
|
$ 53.04 | |||||
| 31 | G185299 | Insulation Block Rs |
|
- | |||||
| 32 | G185276 | Insulation Plug Rs |
|
- | |||||
| 33 | G188375 | Insulation Block Ls |
|
- | |||||
| *25315 | 3916557 | Hot Tube Repair Kit |
|
$ 360.78 | |||||
| 13A | G169873 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 18A | 08000096 | Screw-plate (4) (non-illustrated) |
|
- | |||||
| 2A | G164820 | Washer-no. 10 Ext Tooth Lock (non-illustrated) |
|
- |
