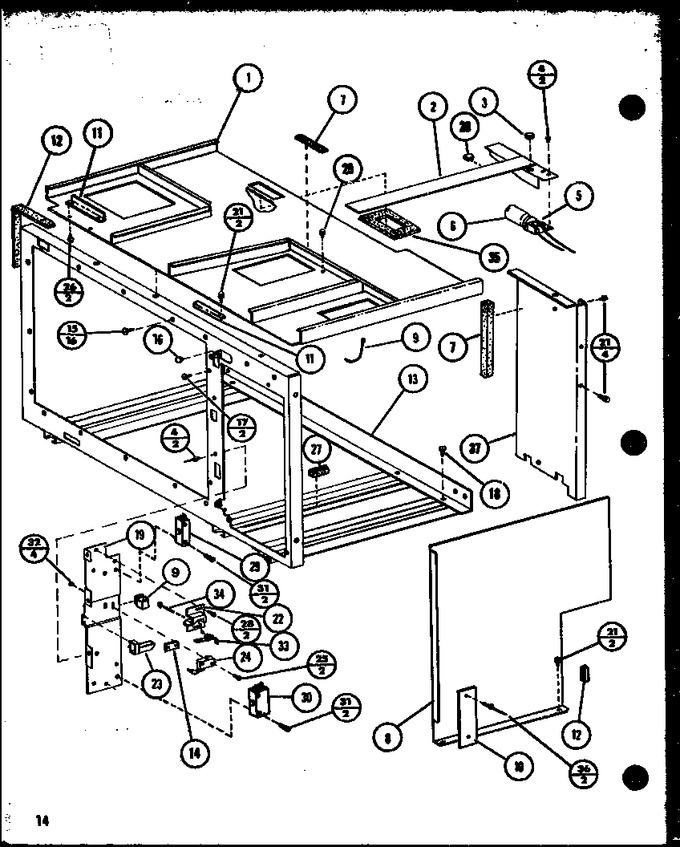

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8552701		Lower Top Weld		Appelez-nous	-
2	D8529903		Light Holder		Appelez-nous	-
3	A4554808		Snap Bushing		Appelez-nous	-
4	A4539601		Pop Rivet		Appelez-nous	-
5	B5691205		Socket-oven Light		Appelez-nous	-
6	A3167501		Bulb Q				$ 28.47
7	A3030309		Gasket (per Foot)		Appelez-nous	-
8	D8529602		Divider		Appelez-nous	-
9	M0110505		Clip-cable		Appelez-nous	-
10	B5020701		Barrier-thermostat		Appelez-nous	-
11	A4423902		Shield Ptd		Appelez-nous	-
12	A3030303		Gasket (per Foot)		Appelez-nous	-
13	D7353124		Yoke Pntd		Appelez-nous	-
14	A1032302		Insulation Intlk Brk		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
16	A1511502		Bumper		Appelez-nous	-
17	WP488234		Screw   (Replaces: M0234422)				$ 6.07
18	M0220114		Screw		Appelez-nous	-
19	D7545101		Bracket		Appelez-nous	-
20	M0114901		Clip		Appelez-nous	-
21	M0217204		Screw		Appelez-nous	-
22	C8889701		Door Catch		Appelez-nous	-
23	C8840402		Door Guide,sleeve		Appelez-nous	-
24	B8306602		Limit Switch		Appelez-nous	-
25	M0229005		Screw K		Appelez-nous	-
26	M0232702		Screw		Appelez-nous	-
27	A3030340		Gasket-per Ft		Appelez-nous	-
28	M0234114		Screw		Appelez-nous	-
29	C8842003		Switch, Limit		Appelez-nous	-
30	C8842004		Switch Limit		Appelez-nous	-
31	M0202521		Screw		Appelez-nous	-
32	M0282005		Nut K				$ 7.07
33	B8305701		Lever		Appelez-nous	-
34	A3182601		Pin Bell-crank		Appelez-nous	-
35	A3030316		Gasket		Appelez-nous	-
36	A4539603		Pop Rivet		Appelez-nous	-
37	C2730502		Panel Inner Back		Appelez-nous	-
