02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts

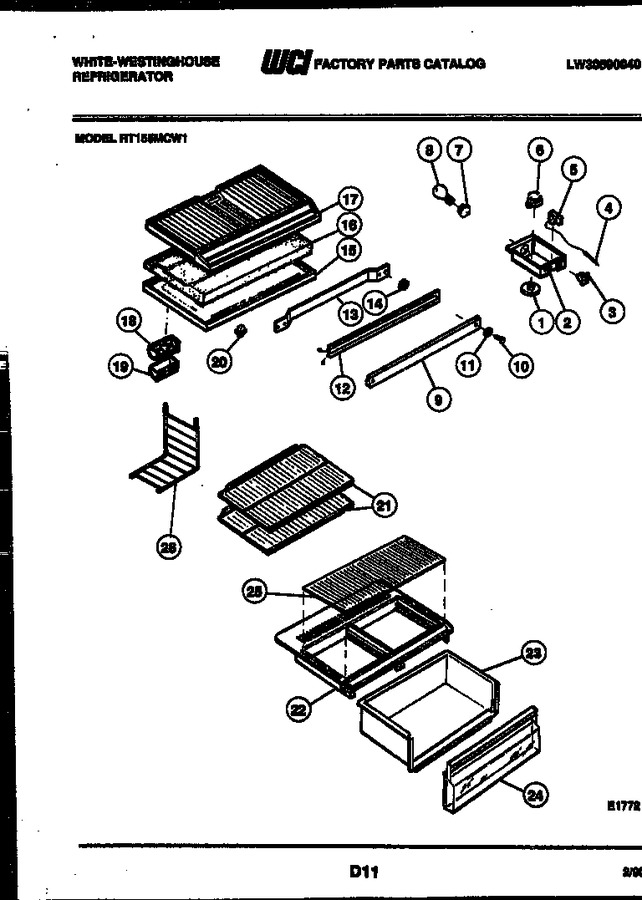

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201777		Knob-temp Control		Appelez-nous	-
2	3206130		Control Box		Appelez-nous	-
3	3206129		Switch-energy Saver		Appelez-nous	-
4	3018891		Hsg-cap Tube		Appelez-nous	-
5	3018894		Control-temperature		Appelez-nous	-
6	G187484		Timer-defrost		Appelez-nous	-
7	08000815		Light Socket		Appelez-nous	-
8	3001179		Light Bulb		Appelez-nous	-
9	3206121		Mullion, White		Appelez-nous	-
10	3206134		Screw-mullion (4)		Appelez-nous	-
11	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
12	3206120		Heater-mullion		Appelez-nous	-
13	5303207247		Strap-mullion Mtg		Appelez-nous	-
14	5303206753		Spacer-mullion Mtg, (2)		Appelez-nous	-
15	3206128		Top Panel-refrig		Appelez-nous	-
16	3206131		Divider, Styrofoam		Appelez-nous	-
17	3206132		Bottom Panel-frzr		Appelez-nous	-
18	3204206		Air Deflector		Appelez-nous	-
19	5303001546		Cover, Deflector		Appelez-nous	-
20	09918806		Light Switch		Appelez-nous	-
21	3206099		Shelf-sliding (2)		Appelez-nous	-
22	3206112		Cover-crisper-less Insert		Appelez-nous	-
23	3206107		Pan-crisper		Appelez-nous	-
24	3206106		Front-crisper Pan		Appelez-nous	-
25	3206111		Insert-crisper Cover		Appelez-nous	-
26	3001570		Shelf-freezer		Appelez-nous	-
*25307	3001290		Screw-support (2)		Appelez-nous	-
*25307	08000244		Support-shelf (2)		Appelez-nous	-
*25307	08010253		Screw-hanger		Appelez-nous	-
*25307	3001562		Hanger-shelf		Appelez-nous	-
*25308	G186773		Clip-freezer Shelf (2)		Appelez-nous	-
*25308	3205266		Protector-edge (2)				$ 80.09
15A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
16A	3206127		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
2A	G187363		Screw		Appelez-nous	-
5A	G107080		Screw		Appelez-nous	-
6A	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
