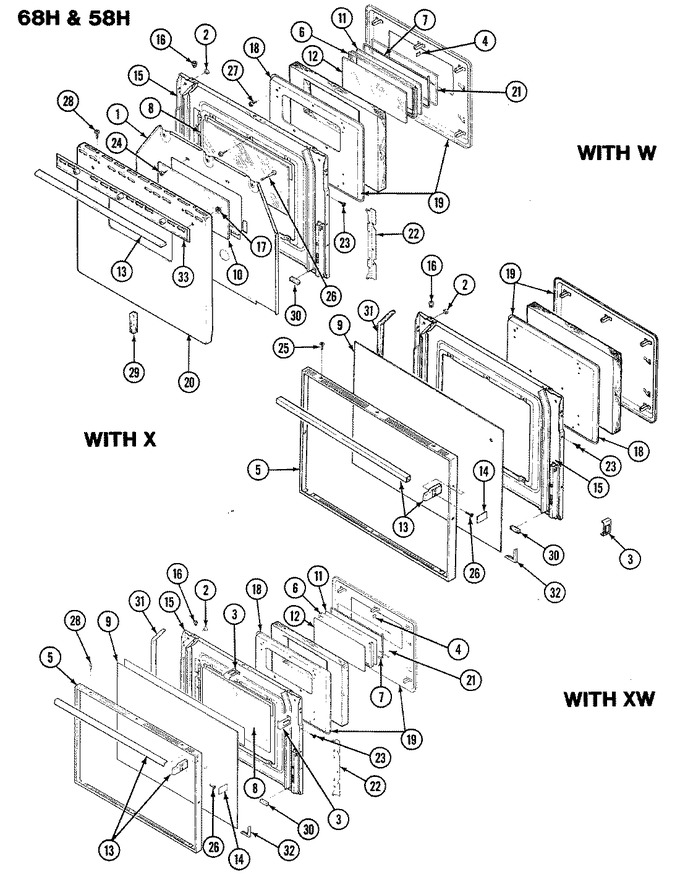

SELECT A DIAGRAM
01 - Body
02 - Door
03 - Drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 2 | 8003P009-60 | Bumper, Door (square) | 04 |
|
- | ||||
| 2 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 4 | 7112P051-60 | Clip, Retainer | 01 |
|
- | ||||
| 5 | 7706P243-60 | Frame, Door | 01 |
|
- | ||||
| 6 | 7706P177-60 | Frame, Window | 01 |
|
- | ||||
| 7 | 7201P018-60 | Gasket, Window | 01 |
|
- | ||||
| 8 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 9 | 7902P276-60 | Glass, Door | 01 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 11 | 7902P287-60 | Glass, Window Inner | 01 |
|
- | ||||
| 11 | 7902P340-60 | Glass, Window Inner | 10 |
|
- | ||||
| 12 | 7902P101-60 | Glass, Window Outer | 01 |
|
- | ||||
| 13 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 14 | 7728P068-60 | Insert, Handle (chrome) | 01 |
|
- | ||||
| 15 | 2402W128-15 | Lining | 01 |
|
- | ||||
| 15 | 2402W149-15 | Lining, Oven Door | 03 |
|
- | ||||
| 15 | 2402W164-15 | Lining Door | 04 |
|
- | ||||
| 16 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 17 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 18 | 2410F016-51 | Pad, Inner | 01 |
|
- | ||||
| 19 | 2410A041-19 | Pad, Assy. | 14 |
|
- | ||||
| 19 | 2410A037-15 | Pad, Oven Door | 01 |
|
- | ||||
| 20 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 21 | 3804F022-45 | Retainer | 01 |
|
- | ||||
| 22 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 23 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 01 |
|
Immediately | $ 6.85 | |||
| 25 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 01 |
|
Immediately | $ 6.85 | |||
| 26 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 27 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 28 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 29 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 30 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 31 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 32 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 33 | W10124350 | Not Required Part Or See Note | 01 |
|
- |
