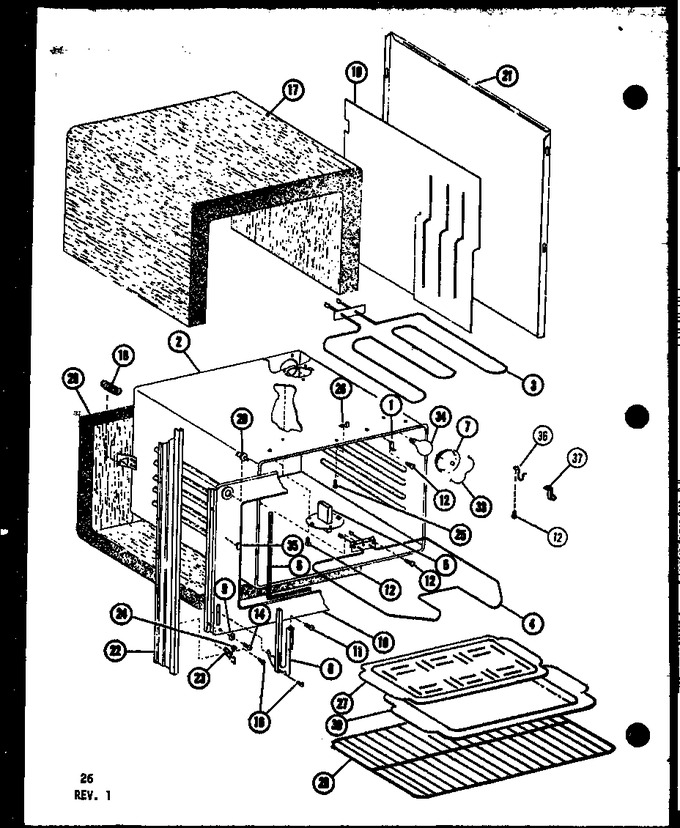

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A4416501		Supt-broiler El		Appelez-nous	-
2	D8510501		Oven Cavity, Weldment		Appelez-nous	-
3	D8528901		Element,broil		Appelez-nous	-
4	C2704901		Bake Element		Appelez-nous	-
5	C2704801		Assy, Vent		Appelez-nous	-
6	B5002602		Gasket		Appelez-nous	-
7	B5003301		Globe-lamp		Appelez-nous	-
8	D8509901		Hinge Assy		Appelez-nous	-
9	M0271201		Washer, Padder		Appelez-nous	-
10	D8509808		Front Cav Panel Kit		Appelez-nous	-
11	M0202232		Screw-adj		Appelez-nous	-
12	M0217824		Screw		Appelez-nous	-
14	M0203342		Screw		Appelez-nous	-
16	M0217224		Screw		Appelez-nous	-
17	B5003001		Insulation K		Appelez-nous	-
18	A4407101		Spring		Appelez-nous	-
19	D8506701		Retainer-insul R		Appelez-nous	-
19	D8506801		Retainer-insul L		Appelez-nous	-
20	C2706501		Switch, Oven Dr		Appelez-nous	-
21	D8501106		Side Panel C		Appelez-nous	-
21	D8501108		Side Pnl G		Appelez-nous	-
21	D8501107		Side Panel-a		Appelez-nous	-
21	D8501109		Side Panel-al		Appelez-nous	-
21	D8501110		Side Panel W K		Appelez-nous	-
22	D8509302		Trim		Appelez-nous	-
22	D8509202		Trim-side Lh		Appelez-nous	-
23	B5010202		Brkt-side Pnl Lh		Appelez-nous	-
23	B5010201		Brkt-side Pnl Rh		Appelez-nous	-
24	A4401502		Bumper		Appelez-nous	-
25	M0217824		Screw		Appelez-nous	-
26	B5003201		Clip-oven Cavity		Appelez-nous	-
27	D8567001		Broiler Pan Set		Appelez-nous	-
28	B5002401		Insulation K		Appelez-nous	-
29	D8510001		Rack 15 11/32`` W X 22 29/32`` L		Appelez-nous	-
30	D8567101		Broiler Pan Set		Appelez-nous	-
33	A4407001		Retainer-lamp		Appelez-nous	-
34	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
35	A4402201		Bumper		Appelez-nous	-
36	A4407201		Retainer-bulb		Appelez-nous	-
37	A4407801		Retainer-thermo		Appelez-nous	-
