Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3349365 Hose, Sensor (upper)   (Replaces: 3349365) Special Order $ 19.21

2 WP96743 Hose   (Replaces: 96743) Special Order $ 90.93

3 WPW10489643 Hose, Water Inlet (2)   (Replaces: 3366916) Special Order $ 70.16

4 90222 Pin Appelez-nous -
5 WP8568314 Strap, Console (2)   (Replaces: 8318255) Special Order $ 7.00

6 8318405 Panel, Rear Appelez-nous -
7 WP62747 Pad, Rear Panel   (Replaces: 62747) Special Order $ 23.63

8 359985 Valve, 2-way (diaphragm 358317) Appelez-nous -
9 3954085 Timer, Control (50 Hz.) (motor Not A Service Part) Appelez-nous -
10 96262 Clip, Retainer Appelez-nous -
11 WP90767 Screw, 8-18 X 3/8   (Replaces: 90767) In-Stock Immediately $ 7.04

12 8316034 Switch, Water Level (w/ Tee Fitting) Appelez-nous -
13 WP3948608 Bracket, Control   (Replaces: 3948608) Special Order $ 104.57

14 8541694 Cord, Power Appelez-nous -
15 3949468 Strain Relief, Power Cord Appelez-nous -
16 8271369 Cap, End (l.h.) Appelez-nous -
17 8316039 Shield, Atc Appelez-nous -
18 WP3360397 Valve, Water Mixing   (Replaces: 3360397) Special Order $ 259.24

19 3179795 Screw, Ground Appelez-nous -
20 WP3351614 Screw, 10-24 X 3/8   (Replaces: 3351614) In-Stock Immediately $ 6.26

21 WP596669 Clamp, Hose   (Replaces: 370451) In-Stock Immediately $ 7.56

22 WP3357319 Hose, Vacuum Break   (Replaces: 3357319) Special Order $ 24.49

23 WP596669 Clamp, Hose   (Replaces: 371503) In-Stock Immediately $ 7.56

24 WP3360977 Break, Vacuum   (Replaces: 387606) In-Stock Immediately $ 45.41

25 WP8519200 Support, Rear Panel   (Replaces: 63290) In-Stock Immediately $ 17.01

26 3351456 Connector, Drain Hose Appelez-nous -
27 WP285655 Clamp, Hose   (Replaces: 370446) In-Stock Immediately $ 7.55

28 3351457 Hose, Pump To Drain Connector Appelez-nous -
29 3948364 Solenoid, Suds Valve Appelez-nous -
30 359089 Rivet Appelez-nous -
31 WP90296 Clip   (Replaces: 90296) Special Order $ 7.07

32 90228 Pin Appelez-nous -
33 3352282 Sensor, Inline Special Order $ 66.68

34 WPW10110247 Control, Atc   (Replaces: 3407159) Special Order $ 116.50

35 3950351 Switch, Water Temperature Appelez-nous -
36 WP3400818 Screw, Timer Mounting   (Replaces: 3400818) Special Order $ 7.16

37 W10113937 Clip, Grounding   (Replaces: 357572) Special Order $ 9.75

38 3407160 Transformer Appelez-nous -
39 8316427 Panel, Console Appelez-nous -
40 3398893 Wire, Ground Appelez-nous -
41 388798 Hose, Drain Appelez-nous -
42 8055003 Clip, Harness & Pressure Hose Special Order $ 36.24

43 352833 Strainer Appelez-nous -
44 W10807860 Knob, Timer   (Replaces: 8271345) In-Stock Immediately $ 44.97

45 WP3957849 Dial, Timer   (Replaces: 8271351) Special Order $ 41.20

46 96746 Hose Special Order $ 71.22

47 WP3957799 Knob, Control   (Replaces: 8271339) In-Stock Immediately $ 47.20

48 358343 Strap Appelez-nous -
49 WP388326 Screw (2) (panel To Top)   (Replaces: 388326) Special Order $ 7.30

50 WP3390631 Screw, 10-16 X 3/8   (Replaces: 62863) Special Order $ 7.04

51 8271363 Cap, End (r.h.) Appelez-nous -
52 7111P002-60 Clamp, Harness   (Replaces: 3390604) Appelez-nous -
53 3351447 Protector, Valve Appelez-nous -
54 8316035 Switch, Suds Level Appelez-nous -
55 303294 Edge Protector Appelez-nous -
56 3352299 Screw Appelez-nous -
57 3351453 Connector, To Tub Appelez-nous -
58 3351452 Connector, To Pump Appelez-nous -
59 WP371502 Clamp, Hose   (Replaces: 371502) Special Order $ 10.38

60 WP616099 Clamp, Hose   (Replaces: 370448) In-Stock Immediately $ 7.03

61 WP16272 Connector   (Replaces: 16272) Special Order $ 7.04

62 95440 Connector Special Order $ 22.55

63 WP285655 Clamp, Hose   (Replaces: 660628) In-Stock Immediately $ 7.55

64 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

65 WP353244 Hose, Suds Level   (Replaces: 8316037) In-Stock Immediately $ 53.94

66 8314879 Shield, Inlet Valve Appelez-nous -
67 3956195 Harness, Wiring (for Detail See Pages 9 & 10) Appelez-nous -
68 WPW10111181 Fuse (in Harness)   (Replaces: 3951198) Special Order $ 29.84


    View Diagram in Separate Window     Print Icon   Print Part List

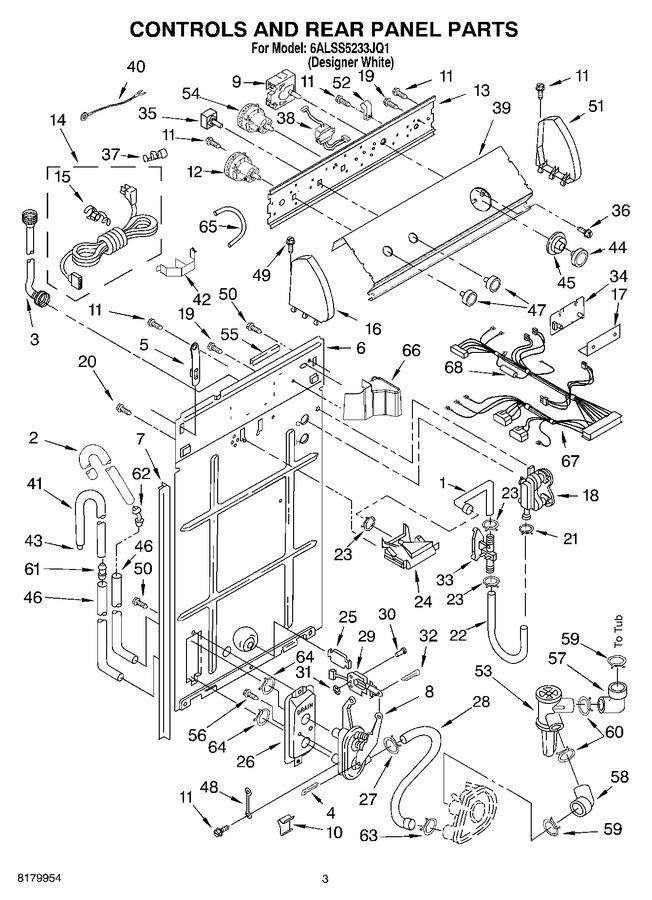

Diagram for 6ALSS5233JQ1
