SELECT A DIAGRAM

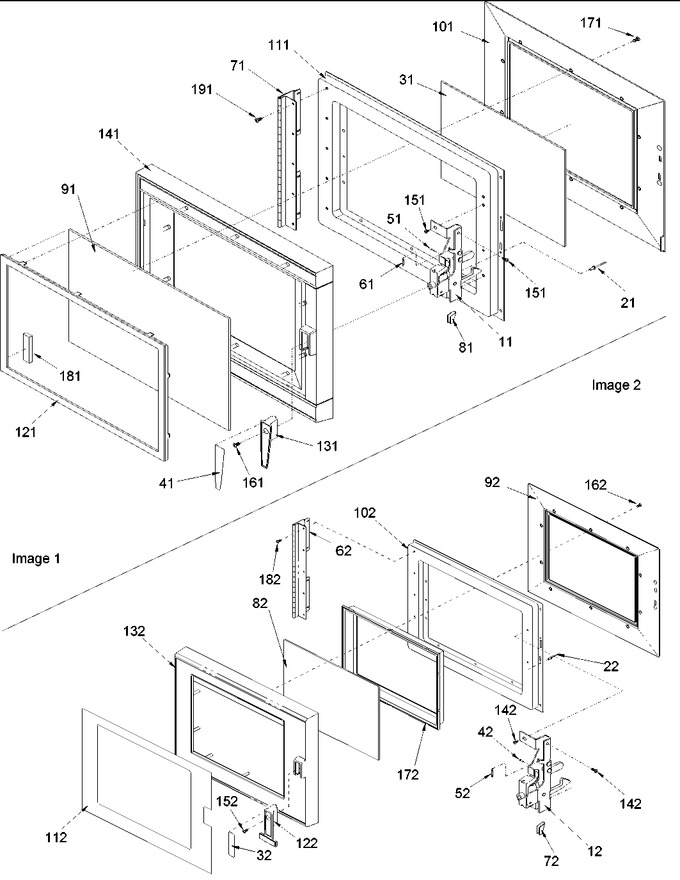

01 - Door Assembly


02 - Internal Components


03 - Outer Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0150122		Latch Assy		Appelez-nous	-
21	A4539601		Pop Rivet		Appelez-nous	-
31	B8371202		Window, Inner		Appelez-nous	-
41	B8378901		Ins Hdl		Appelez-nous	-
51	B8379201		Pin, Latch		Appelez-nous	-
61	C8893502		Spring, Door Latch		Appelez-nous	-
71	C8936213		Hinge, Door (black)		Appelez-nous	-
81	C8991301		Pad-latch Assy		Appelez-nous	-
91	C8965302		Window		Appelez-nous	-
101	D7683505		Door, Inner V		Appelez-nous	-
111	D7683719		Weldment-inner Door (blk)		Appelez-nous	-
121	D7716001		Retainer, Lens		Appelez-nous	-
131	D7741501		Handle Front		Appelez-nous	-
141	D7755402		Door, Blk Outer V		Appelez-nous	-
151	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
161	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
171	M0232218		Screw,hi/lo Y Drive		Appelez-nous	-
181	A3030301		Gasket (inch)		Appelez-nous	-
191	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
