01 - Blower & Cavity
02 - Door
03 - Electrical Components
04 - Outer Case
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

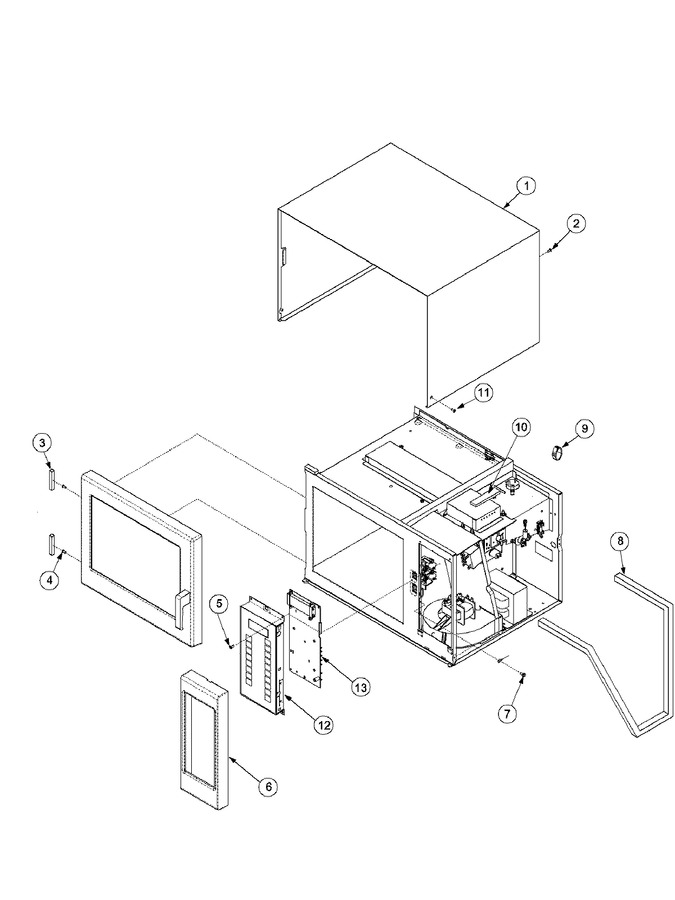

| 1 | D7684913 | Wrapper,oc |
|
- | |||||
| 2 | M0231717 | Screw, Tf |
|
- | |||||
| 3 | A3263904 | Gasket |
|
- | |||||
| 4 | WP12990527 | Screw (Replaces: M0229716) |
|
Immediately | $ 7.15 | ||||
| 5 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 6 | 59001033 | Side Escutcheon-rcs10 |
|
- | |||||
| 7 | M0231717 | Screw, Tf |
|
- | |||||
| 8 | A3263907 | Gasket - Each |
|
- | |||||
| 9 | M0118705 | Clip, Guide |
|
- | |||||
| 10 | 59001026 | Sealer, Rtv |
|
- | |||||
| 11 | A4591129 | Gasket K |
|
- | |||||
| 12 | R9900588 | Assy, Touch Panel |
|
- | |||||
| 13 | 12470111 | Board,hv/lv |
|
- |
