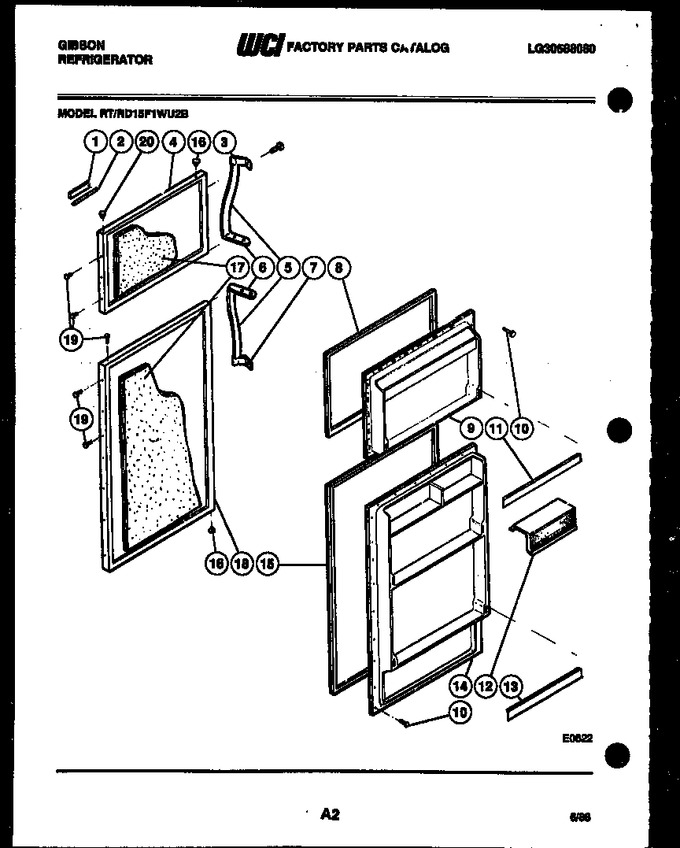

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G188378-02		Label, Upper		Appelez-nous	-
2	G175117-02		Nameplate		Appelez-nous	-
3	G179800		End-handle		Appelez-nous	-
4	G171704		Outer Panel-white		Appelez-nous	-
4	G171704-10		Outer Panel-coffee		Appelez-nous	-
4	G171704-09		Outer Panel-wheat		Appelez-nous	-
4	G171704-08		Outer Panel-avocado		Appelez-nous	-
4	G171704-11		Outer Panel-almond		Appelez-nous	-
5	G170495-24		Grip-handle (2)		Appelez-nous	-
6	G187329-01		End, Handle (2)		Appelez-nous	-
7	G179801		End-handle		Appelez-nous	-
8	G186932-03		Gasket-freezer		Appelez-nous	-
9	G188754-02		Inner Panel-freezer		Appelez-nous	-
10	G144049		Screw		Appelez-nous	-
11	G164698-47		Rack-freezer		Appelez-nous	-
12	G187490-04		Door-dairy		Appelez-nous	-
13	G164698-48		Rack-refrigerator (2)		Appelez-nous	-
14	G189034-02		Inner Panel-refrigerator		Appelez-nous	-
15	G186932-02		Gasket-refrigerator		Appelez-nous	-
16	G183138		Bearing Hinge (8)		Appelez-nous	-
17	G89643		Insulation (bulk)		Appelez-nous	-
18	G171701-09		Outer Panel-wheat		Appelez-nous	-
18	G171701-10		Outer Panel-coffee		Appelez-nous	-
18	G171701-08		Outer Panel-avocado		Appelez-nous	-
18	G171701		Outer Panel-white		Appelez-nous	-
18	G171701-11		Outer Panel-almond		Appelez-nous	-
19	G162977-01		Button Plug-white		Appelez-nous	-
19	G162977-08		Button Plug-avocado		Appelez-nous	-
19	G162977-10		Button Plug-coffee		Appelez-nous	-
19	G162977-11		Button Plug-almond		Appelez-nous	-
19	G162977-09		Button Plug-wheat		Appelez-nous	-
20	G169332-10		Button-plug, Coffee		Appelez-nous	-
20	G169332-11		Button Plug, Almond		Appelez-nous	-
20	G169332-01		Button Plug, White		Appelez-nous	-
20	G169332-08		Button Plug-avocado		Appelez-nous	-
20	G169332-09		Button Plug, Wheat		Appelez-nous	-
2A	G153407-60		Tape, Nameplate (non-illustrated)		Appelez-nous	-
7A	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
