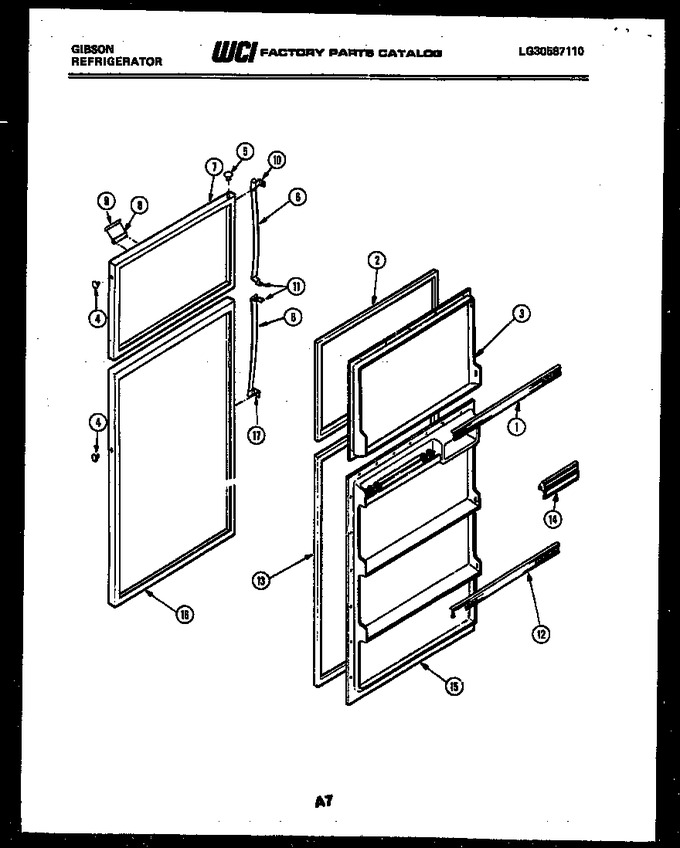

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G164698-47 | Rack |
|
- | |||||
| 2 | G186932-03 | Gasket |
|
- | |||||
| 3 | G188754-02 | Panel-inner |
|
- | |||||
| 4 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 4 | G162977-01 | Button Plug-white |
|
- | |||||
| 4 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 4 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 4 | G162977-11 | Button Plug-almond |
|
- | |||||
| 5 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 5 | Q169332-09 | Btn-plug Weat |
|
- | |||||
| 5 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 5 | G169332-01 | Button Plug, White |
|
- | |||||
| 5 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 6 | G170495-24 | Grip-handle |
|
- | |||||
| 7 | G171427 | Panel-outer-whte |
|
- | |||||
| 7 | G171427-11 | Panel-outer-almd |
|
- | |||||
| 7 | G171427-10 | Panel-outer-cofe |
|
- | |||||
| 7 | G171427-09 | Panel-outer-weat |
|
- | |||||
| 7 | G171427-08 | Panel-outer-avoc |
|
- | |||||
| 8 | G175117-01 | Nameplate |
|
- | |||||
| 9 | G188378-02 | Label Nameplate |
|
- | |||||
| 10 | G179800 | End-hndl |
|
- | |||||
| 11 | G187329-01 | End-hndl (2) |
|
- | |||||
| 12 | G164698-48 | Rack-door (2) |
|
- | |||||
| 13 | G186932-02 | Gasket |
|
- | |||||
| 14 | G187490-04 | Door-butter |
|
- | |||||
| 15 | G189034-02 | Panel-inner |
|
- | |||||
| 16 | G171426-08 | Panel-outer-avoc |
|
- | |||||
| 16 | G171426-10 | Panel-outer-cofe |
|
- | |||||
| 16 | G171426 | Panel-outer-whte |
|
- | |||||
| 16 | G171426-09 | Panel-outer-weat |
|
- | |||||
| 16 | G171426-11 | Panel-outer-almd |
|
- | |||||
| 17 | G169699-11 | Kit Conv. Almd |
|
- | |||||
| 17 | G169699-01 | Kit Conv. Whte |
|
- | |||||
| 17 | G179801 | End-hndl |
|
- | |||||
| 17 | G169699-10 | Kit Conv. Cofe |
|
- | |||||
| 17 | G169699-09 | Kit Conv. Weat |
|
- | |||||
| 17 | G169699-08 | Kit Conv. Avoc. |
|
- | |||||
| 10A | G185566 | Screw |
|
- | |||||
| 15A | G162585 | Screw |
|
- | |||||
| 16A | G183138 | Bearing-hng (non-illustrated) |
|
- | |||||
| 17A | G185566 | Screw |
|
- | |||||
| 3A | G162585 | Screw |
|
- | |||||
| 7A | G183138 | Bearing Hnge (4) (non-illustrated) |
|
- |
