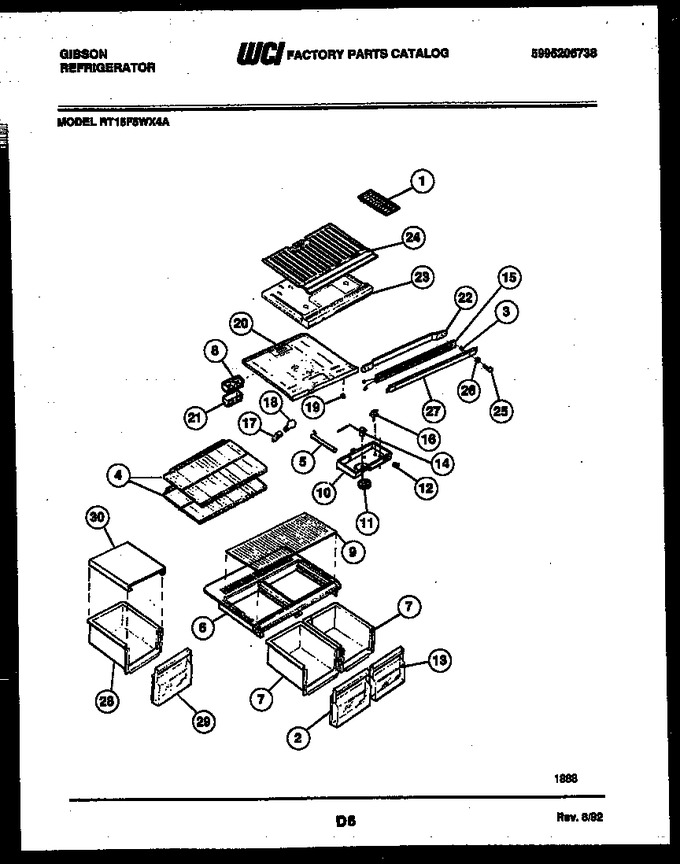

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | 5393272514 | Front-crisper Pan-lh |
|
- | |||||
| 3 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 4 | 5303272516 | Shelf-refrigerator (2) |
|
- | |||||
| 5 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 6 | 3206112 | Crisper Cover |
|
- | |||||
| 7 | 3206212 | Pan (2) |
|
- | |||||
| 8 | 308014667 | Air Deflector |
|
- | |||||
| 9 | 3206111 | Insert-crisper Cover |
|
- | |||||
| 10 | 5303272507 | Control Box |
|
- | |||||
| 11 | 5303201777 | Knob - Temperature Control |
|
- | |||||
| 12 | 5303272508 | Switch-rocker |
|
- | |||||
| 13 | 5303272513 | Front-crisper Pan-rh |
|
- | |||||
| 14 | 5303018894 | Control-temperature |
|
- | |||||
| 15 | 3206120 | Heater-mullion |
|
- | |||||
| 16 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 17 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 3206128 | Top-refrigerator |
|
- | |||||
| 21 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 22 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 23 | 3206131 | Divider, Styrofoam |
|
- | |||||
| 24 | 3206132 | Bottom-freezer |
|
- | |||||
| 25 | 3206134 | Screw - Mullion (2) |
|
- | |||||
| 26 | 5308003607 | Washer, No. 10 Steel (2) |
|
$ 1.00 | |||||
| 27 | 3206123 | Mullion-wheat |
|
- | |||||
| 27 | 3206125 | Mullion, Almond |
|
- | |||||
| 27 | 3206121 | Mullion, White |
|
- | |||||
| 28 | 3206209 | Meat-pan |
|
$ 183.70 | |||||
| 29 | 5303272515 | Front-meat Pan |
|
- | |||||
| 30 | 3206205 | Cover - Meat Pan |
|
- | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3206127 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 8A | 5303000590 | Extension & Insulation Air Deflector (non-illustrated) |
|
- |
