02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts

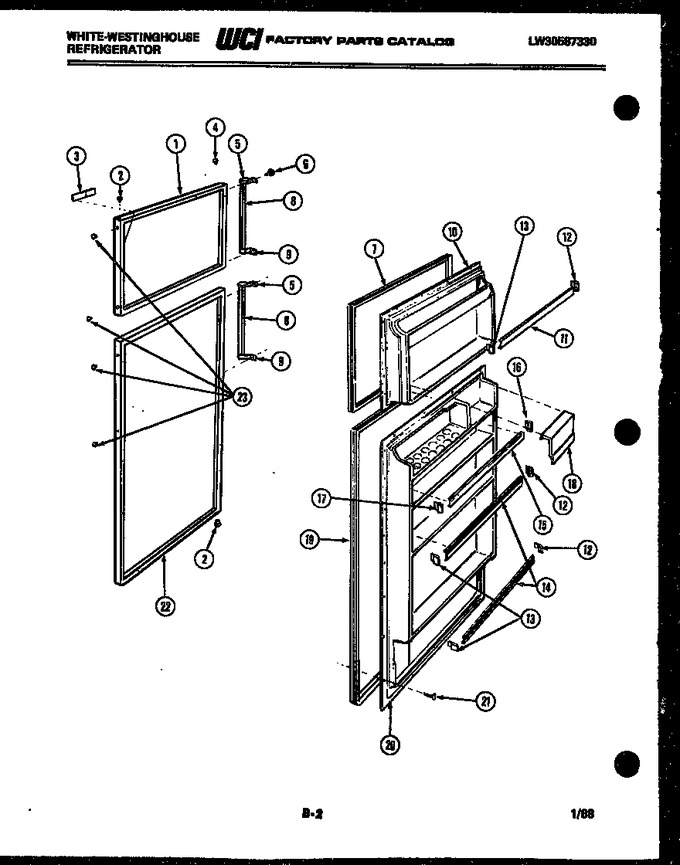

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G190162-11		Panel-ext Frzr Almd		Appelez-nous	-
2	G183138		Bearing Hinge (8)		Appelez-nous	-
3	R304001		Nameplate		Appelez-nous	-
4	G169332-11		Button Plug, Almond		Appelez-nous	-
5	G175809		End-handl Top (2)		Appelez-nous	-
6	G185566		Screw		Appelez-nous	-
7	G186932-03		Gasket-freezer		Appelez-nous	-
8	G175666-09		Handle-door (2)		Appelez-nous	-
9	G175810		End-handl Btm (2)		Appelez-nous	-
10	G176904-01		Panel-inner Frzr		Appelez-nous	-
11	G490079-01		Rack-door Frzr		Appelez-nous	-
12	G176891-01		Support-rack Rh (3)		Appelez-nous	-
13	G176892-01		Support-rack Lh (3)		Appelez-nous	-
14	G490079-02		Rack-door Ref (2)		Appelez-nous	-
15	G177220-01		Rack-door Ref		Appelez-nous	-
16	G177221-02		Support-rack Rh		Appelez-nous	-
17	G177222-01		Support-rack Lh		Appelez-nous	-
18	G176911-01		Door-dairy		Appelez-nous	-
19	G186932-11		Gasket-refrig		Appelez-nous	-
20	G176988-01		Panel-inner Refrig		Appelez-nous	-
21	G162585		Screw		Appelez-nous	-
22	G190165-11		Panel-ext Ref Almd		Appelez-nous	-
23	G162977-11		Button Plug-almond		Appelez-nous	-
