SELECT A DIAGRAM

01 - Blower & Cavity


02 - Door


03 - Electrical Components


04 - Outer Case


05 - Supplemental Information


06 - Wiring Information

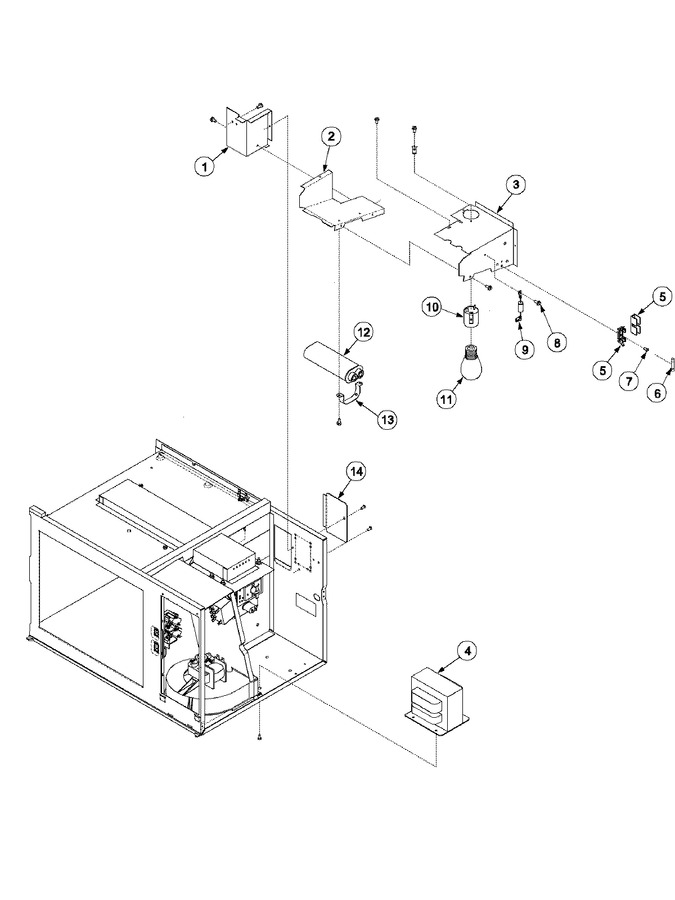

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7772101		Shield, Light		Appelez-nous	-
1	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
2	D7772202		Air Duct. Bottom		Appelez-nous	-
3	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
3	D7772007		Duct, Top Air		Appelez-nous	-
4	WP3390631		Screw   (Replaces: M0216729)				$ 7.04
4	10426612		Transformer		Appelez-nous	-
5	12136503		Block-1 Pole Fuse				$ 5.70
6	ABC20		Fuse 20 Amp K   (Replaces: M0805101)			Immediately	$ 10.31
7	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
8	M0231617		Screw,tf		Appelez-nous	-
9	11QBP0527		Rectifier   (Replaces: B8383101)				$ 18.64
10	B8371401		Receptacle, Lamp		Appelez-nous	-
11	8009		Lamp 41w   (Replaces: 10664502)			Immediately	$ 16.80
12	59001196		Capacitor-.72		Appelez-nous	-
13	A4055405		Strap, Capacitor		Appelez-nous	-
13	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
14	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
14	B8370701		Cover, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
