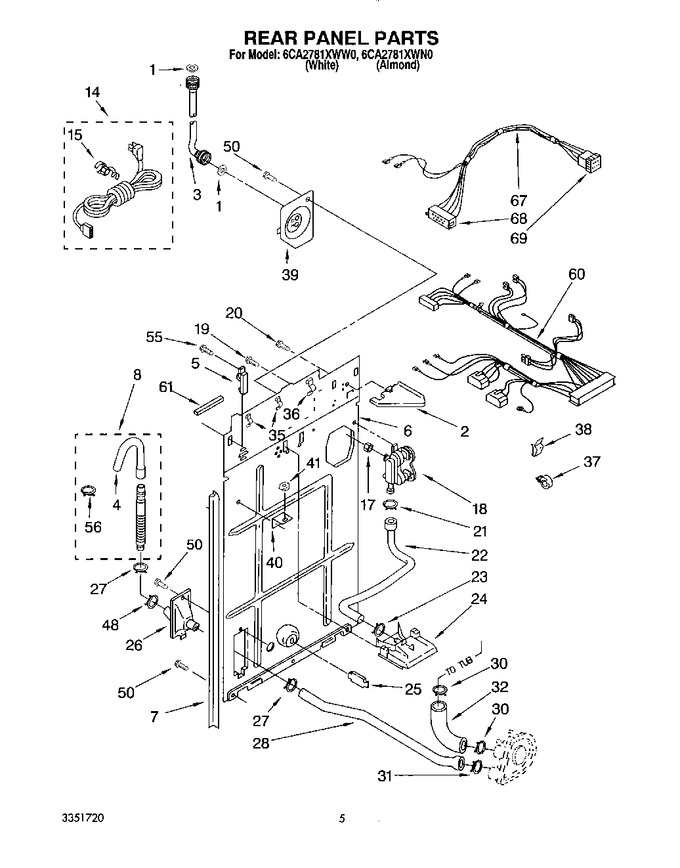

04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase


11 - Water System


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	3348424		Sheild, Suds		Appelez-nous	-
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3358798)				$ 70.16
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	285929		Panel, Rear   (Replaces: 3357692)				$ 292.04
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
8	285664		Hose, Corrugated Plastic Drain (4`-8``)   (Replaces: 661575)			Immediately	$ 33.20
8	285666		Hose, Corrugated Plastic Drain (9`-9``) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
14	3353308		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord To Rear Panel   (Replaces: 63848)				$ 11.64
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285874		Valve, Water Mixing   (Replaces: 3360393)				$ 183.31
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 7.04
20	WP681414		Screw, Ground (10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 76.37
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	WP98997		Clip, Water Level Hose To Rear Panel   (Replaces: 98997)				$ 9.98
36	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
37	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
38	62732		Clip, Harness		Appelez-nous	-
39	285930		Plate, Mixing Valve   (Replaces: 3347682)				$ 67.10
40	3347824		Bracket, Top Lock		Appelez-nous	-
41	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
55	WP308685		Screw, Hinge To Rear Panel (10-16 X 1/2)   (Replaces: 3357011)			Immediately	$ 7.08
56	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
60	3352959		Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips		Appelez-nous	-
61	303294		Edge Protector		Appelez-nous	-
67	3352958		Harness, Timer (includes Illus. 68 & 69)		Appelez-nous	-
68	W10876590		Block, Timer Disconnect   (Replaces: 352089)				$ 11.48
69	3349294		Connector		Appelez-nous	-
