02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

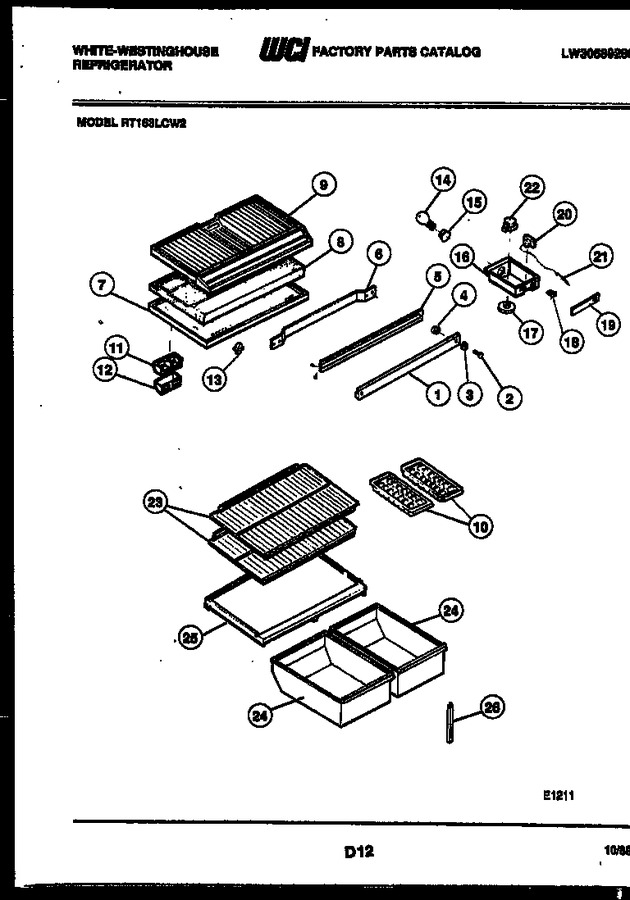

| 1 | 3200465 | Mullion-white |
|
- | |||||
| 2 | G183103 | Screw-mullion (4) |
|
- | |||||
| 3 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 4 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 5 | G177255 | Heater, Mullion |
|
- | |||||
| 6 | G166709 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3016378 | Top Panel-refr |
|
- | |||||
| 8 | G176774 | Divider-styrofoam |
|
- | |||||
| 9 | G490022-01 | Bottom Panel-freezer |
|
- | |||||
| 10 | G156376-01 | Ice Tray (2) |
|
- | |||||
| 11 | G162675 | Air Deflector |
|
- | |||||
| 12 | G162178 | Cover, Deflector |
|
- | |||||
| 13 | G187200 | Switch-light |
|
- | |||||
| 14 | G25806 | Light Bulb |
|
- | |||||
| 15 | G168302 | Light Socket |
|
- | |||||
| 16 | G176722-01 | Control Box |
|
- | |||||
| 17 | G490107-02 | Knob-temperature Control |
|
- | |||||
| 18 | G178402-02 | Switch-energy Saver |
|
- | |||||
| 19 | G000180105 | Label - Control Box |
|
- | |||||
| 20 | 3200810 | Control-temperature |
|
- | |||||
| 21 | G142176-11 | Sleeve-plastic |
|
- | |||||
| 22 | G187484 | Timer-defrost |
|
- | |||||
| 23 | G179415-01 | Shelf-refrigerator (2) |
|
- | |||||
| 24 | G490015-01 | Pan-crisper (2) |
|
- | |||||
| 25 | G490016-03 | Cover-pan |
|
- | |||||
| 26 | 3205987 | Support-adj Crisper Cover |
|
- | |||||
| 16A | G187363 | Screw |
|
- | |||||
| 20A | G107080 | Screw |
|
- | |||||
| 22A | G105289 | Screw |
|
- | |||||
| 7A | G162673 | Screw-panel Mtg (3) (non-illustrated) |
|
- | |||||
| 8A | G174818 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 8B | G168978 | Clamp-harness (non-illustrated) |
|
- | |||||
| 9A | G168866 | Tape Pad-vent (non-illustrated) |
|
- |
