SELECT A DIAGRAM

01 - Page 2


02 - Page 3


03 - Page 4


04 - Page 5


05 - Page 6

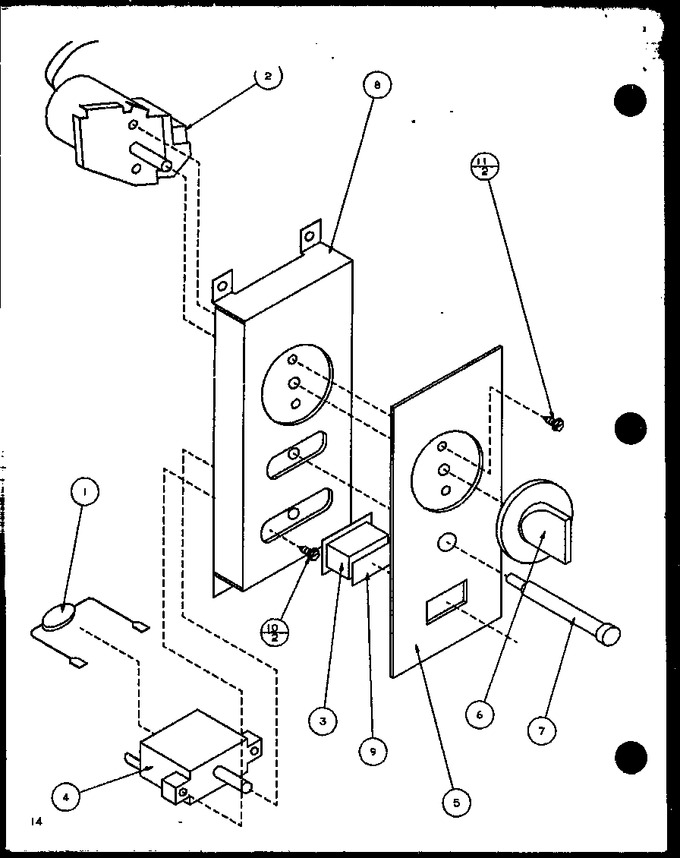

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1027301		Ptc Resistor Assy		Appelez-nous	-
2	C8970401		Timer, 5 Min		Appelez-nous	-
3	C8846503		Button Push		Appelez-nous	-
4	C8933601		Relay, Starter		Appelez-nous	-
5	D7702403		Thinplate		Appelez-nous	-
5	D7702405		Thinplate-timer		Appelez-nous	-
6	B5798004		Knob Assy		Appelez-nous	-
7	M0360204		Light-indicator/ W Clip		Appelez-nous	-
8	D7685308		Plate, Cont.mtg		Appelez-nous	-
9	A1004810		Insert, Button (label)		Appelez-nous	-
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
11	M0202528		Screw		Appelez-nous	-
NI	R0193574		Magnetic Y-drive Bit		Appelez-nous	-
NI	72017		Paint-white-k   (Replaces: R0197004)			Immediately	$ 11.07
NI	R0197055		Paint Deep Rich Br.		Appelez-nous	-
NI	B8383533		Use And Care Manual		Appelez-nous	-
NI	R0193557		Escutcheon Rml Tool		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
