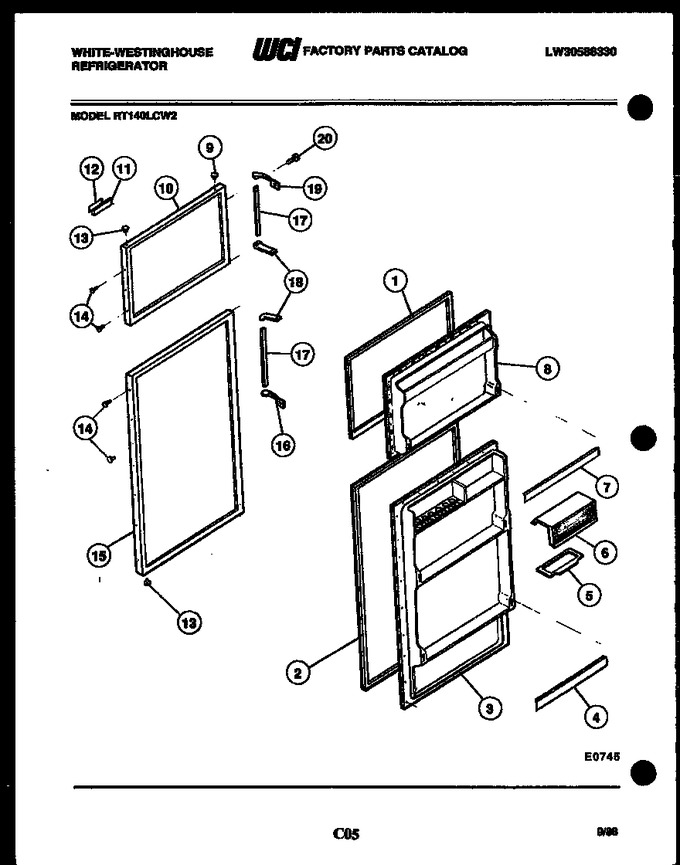

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R2001018		Freezer Door-wheat		Appelez-nous	-
2	G169332-08		Button Plug-avocado		Appelez-nous	-
3	G183138		Bearing Hinge (8)		Appelez-nous	-
4	R304001		Nameplate		Appelez-nous	-
5	R2001024		Refrigerator Door-wheat		Appelez-nous	-
6	G155072		Door Stop-refrigerator		Appelez-nous	-
7	G162977-09		Button Plug-wheat		Appelez-nous	-
8	G176988-01		Inner Panel-refrigerator		Appelez-nous	-
9	G186932-11		Gasket-refrigerator		Appelez-nous	-
10	G186932-03		Gasket-freezer		Appelez-nous	-
11	G176904-01		Inner Panel-freezer		Appelez-nous	-
12	G490079-01		Door Rack-freezer		Appelez-nous	-
13	G176891-01		Support-rs (3)		Appelez-nous	-
14	G176892-01		Support-ls (3)		Appelez-nous	-
15	G161079		Butter Dish		Appelez-nous	-
16	G176911-01		Butter Door		Appelez-nous	-
17	G177220-01		Door Rack-refrigerator		Appelez-nous	-
18	G177221-01		Support-rs		Appelez-nous	-
19	G177222-01		Support-ls		Appelez-nous	-
20	G490079-02		Door Rack-lower (2)		Appelez-nous	-
21	G175666-18		Handle Grip (2)		Appelez-nous	-
22	G175809		Handle-end Top		Appelez-nous	-
23	G187329-01		Handle End (2)		Appelez-nous	-
24	G175810		Handle-end Bottom		Appelez-nous	-
25	G185566		Screw		Appelez-nous	-
11A	G162585		Screw		Appelez-nous	-
6A	G155072		Door Stop-freezer (non-illustrated)		Appelez-nous	-
6B	G185566		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-
