02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

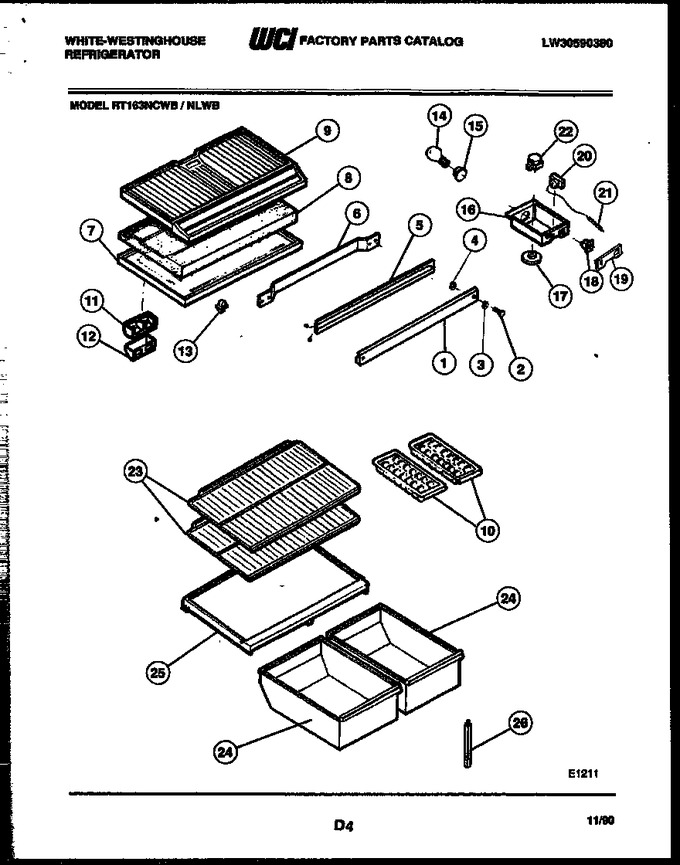

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916134		Mullion, Almond		Appelez-nous	-
2	5308012258		Screw				$ 2.25
3	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
4	5303200464		Spacer, Mullion (2)		Appelez-nous	-
5	5308017408		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mounting		Appelez-nous	-
7	5303016378		Top Panel-refr		Appelez-nous	-
8	5308009750		Divider, Styrofoam		Appelez-nous	-
9	5303001537		Bottom Panel-freezer		Appelez-nous	-
10	5303001324		Ice Tray (2)		Appelez-nous	-
11	5308000071		Air Deflector		Appelez-nous	-
12	5303001546		Cover, Deflector		Appelez-nous	-
13	5309918806		Switch, Light			Immediately	$ 21.97
14	5303001179		Light Bulb		Appelez-nous	-
15	5308000129		Light Socket				$ 62.16
16	5317672201		Control Box		Appelez-nous	-
17	5308010011		Knob-temperature Control		Appelez-nous	-
18	5303001670		Switch-energy Saver		Appelez-nous	-
19	G000180105		Label - Control Box		Appelez-nous	-
20	5303200810		Control-temperature				$ 126.87
21	5308037932		Sleeve, Plastic		Appelez-nous	-
22	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
23	5317941501		Shelf - Refrigerator (2)		Appelez-nous	-
24	3016760		Pan-crisper (2)		Appelez-nous	-
25	5349001603		Cover-pan		Appelez-nous	-
26	5303205987		Support - Adjustment Crisper Cover				$ 48.41
16A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
20A	5303001260		Screw				$ 6.73
22A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
8A	3001383		Wiring Harness, Divider (non-illustrated)		Appelez-nous	-
8B	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
9A	08000185		Tape, Foam, Adhesive		Appelez-nous	-
