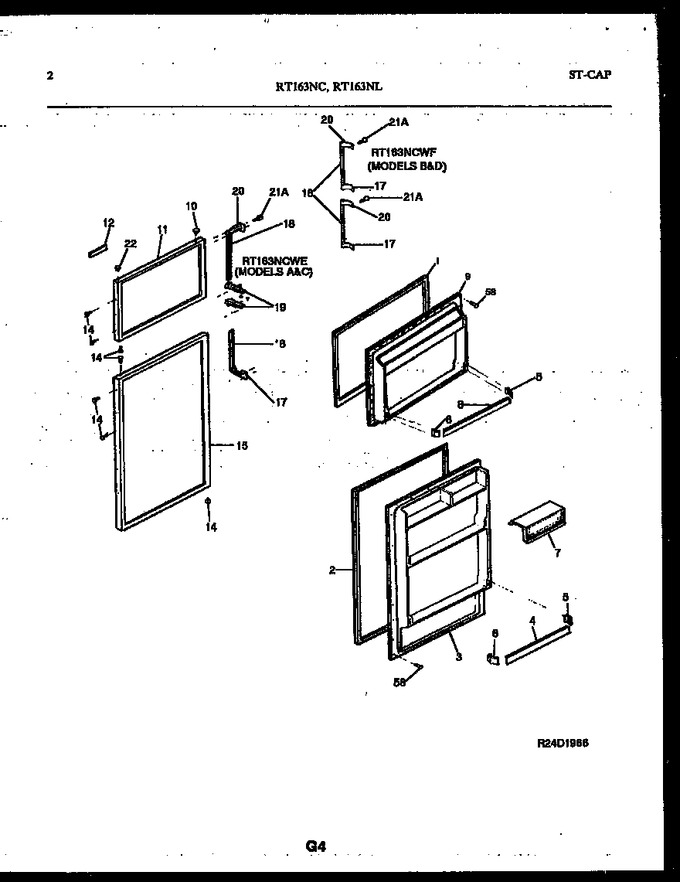

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303017373 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5318359102 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303274178 | Rack-door, (2) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 | |||||
| 7 | 5316177640 | Door-dairy |
|
- | |||||
| 8 | 5303274179 | Rack-door |
|
- | |||||
| 9 | 5318358902 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916416 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303281098 | Nameplate Assy |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916420 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5303001015 | Handle End |
|
$ 74.29 | |||||
| 18 | 3202547 | Handle-door, Almond, (2) |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001014 | Handle End |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *53841 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
