SELECT A DIAGRAM

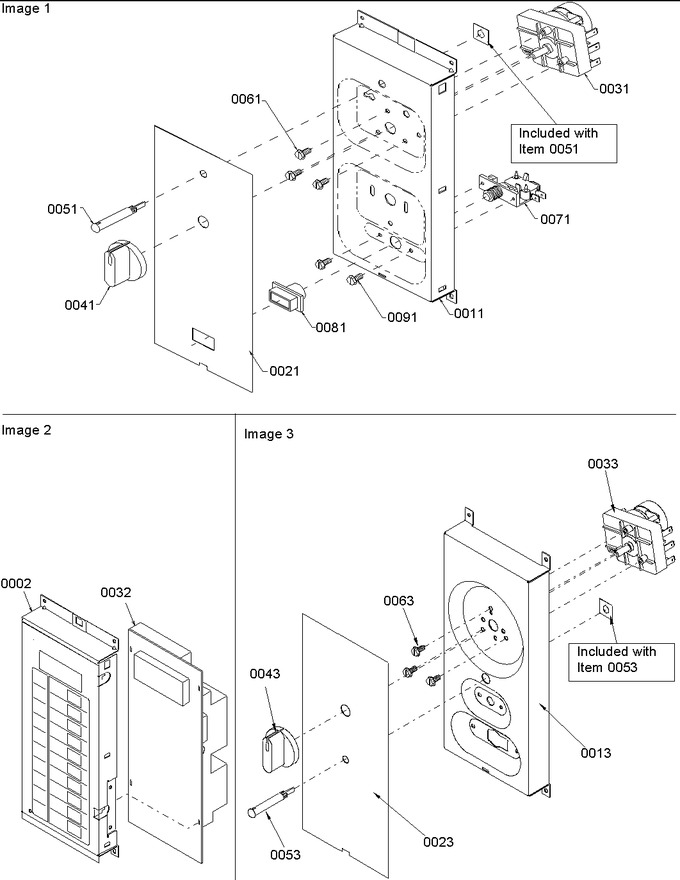

01 - Control Panel Assembly
02 - Door Assembly
03 - Internal Components
04 - Outer Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | D7685310 | Plate, Cont.mtg |
|
- | |||||
| 23 | D7702408 | Thinplate, Timer |
|
- | |||||
| 33 | 2025206101 | Timer, 6 Minute |
|
- | |||||
| 43 | 12360801 | Knob, Timer |
|
- | |||||
| 53 | M0360204 | Light-indicator/ W Clip |
|
- | |||||
| 63 | M0224128 | Screw |
|
- |
