01 - Body

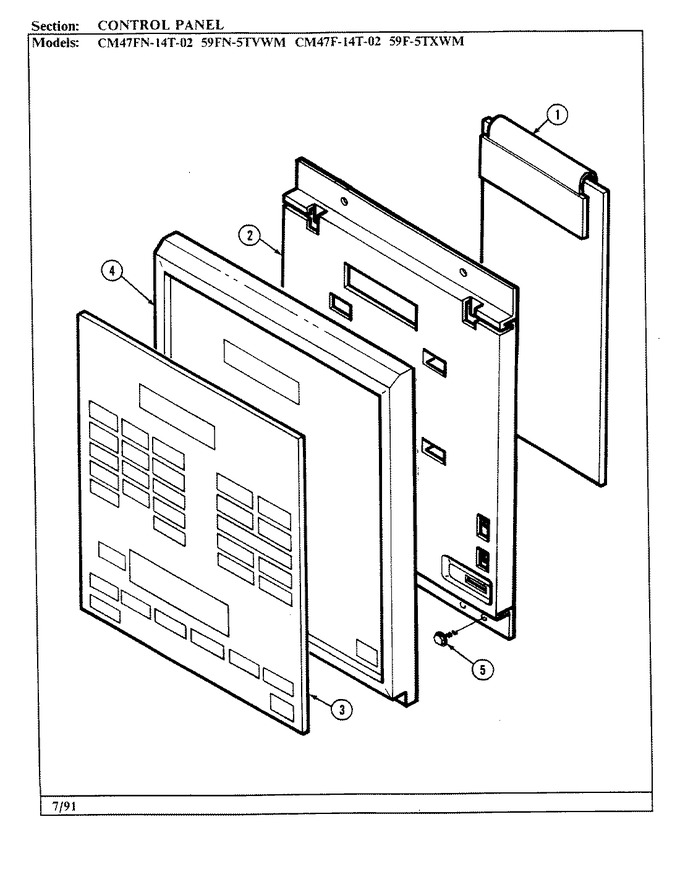

02 - Control Panel (cm47f-14t-02)
03 - Door Parts (cm47f-14t-02)
04 - Internal Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 1 | 01210101 | Board, Control (t-clock) | 01 |
|
- | ||||
| 1 | 01210093 | Board, Control | 01 |
|
- | ||||
| 2 | 02030164 | Bracket, Control Mtg | 01 |
|
- | ||||
| 3 | Y02060353 | Switch, Control Panel | 01 |
|
- | ||||
| 3 | 74008717 | Rocker Switch (Replaces: Y01140082) | 01 |
|
$ 72.68 | ||||
| 4 | 03110069 | Clip, Switch | 01 |
|
- | ||||
| 4 | Y02100221 | Control Panel | 01 |
|
- | ||||
| 5 | 04010255 | Wire Assembly | 01 |
|
- | ||||
| 5 | Y03010147 | Screw (top) | 01 |
|
- | ||||
| 5 | Y02120121 | Seal, Hinge Side | 01 |
|
- | ||||
| 5 | 02100231 | Trim (white) | 01 |
|
- | ||||
| 5 | 03020061 | Screw | 01 |
|
- |
