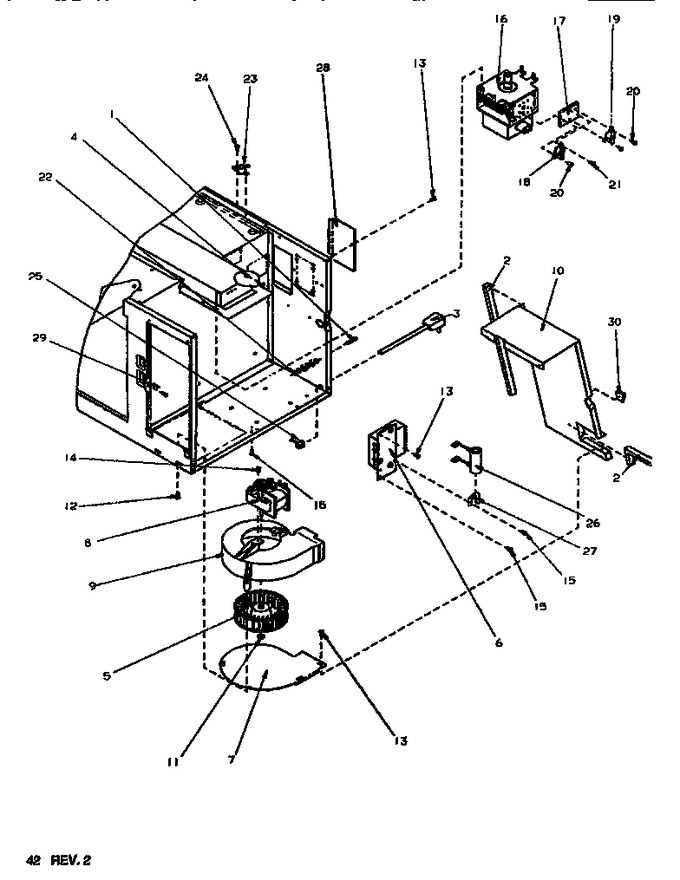

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0293502		Stud-self Clinch		Appelez-nous	-
2	A3030302		Gasket		Appelez-nous	-
3	B5669016		Cord-power		Appelez-nous	-
4	M0310316		Plug Button		Appelez-nous	-
5	C8793501		Blower Wheel		Appelez-nous	-
6	10403503		Switch, Interlock Assy		Appelez-nous	-
7	C8942501		Brkt Scroll		Appelez-nous	-
9	D7684601		Scroll, Blower		Appelez-nous	-
10	D7685409		Blower Partition,black E Ct		Appelez-nous	-
11	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
12	M0254706		Screw		Appelez-nous	-
13	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
14	M0213123		Screw		Appelez-nous	-
15	M0251002		Screw		Appelez-nous	-
16	C8761716		Magnetron		Appelez-nous	-
16	C8761717		Magnetron		Appelez-nous	-
17	B8380601		Plate, Thermal Cutout		Appelez-nous	-
18	18QBP110H		Thermal Cutout   (Replaces: B5684112)		Appelez-nous	-
19	B5684113		Protector, Thermal		Appelez-nous	-
20	M0232012		Screw		Appelez-nous	-
21	M0229916		Screw T.c		Appelez-nous	-
22	M0282005		Nut K				$ 7.07
23	B5795305		Fuse, Thermal		Appelez-nous	-
24	M0225929		Screw		Appelez-nous	-
25	M0370009		Relief- Strain		Appelez-nous	-
26	C8981602		Resistor Assy		Appelez-nous	-
27	C8985901		Bracket		Appelez-nous	-
28	B8370702		Cover, Light		Appelez-nous	-
29	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
30	M0104102		Clip, Cord				$ 8.10
