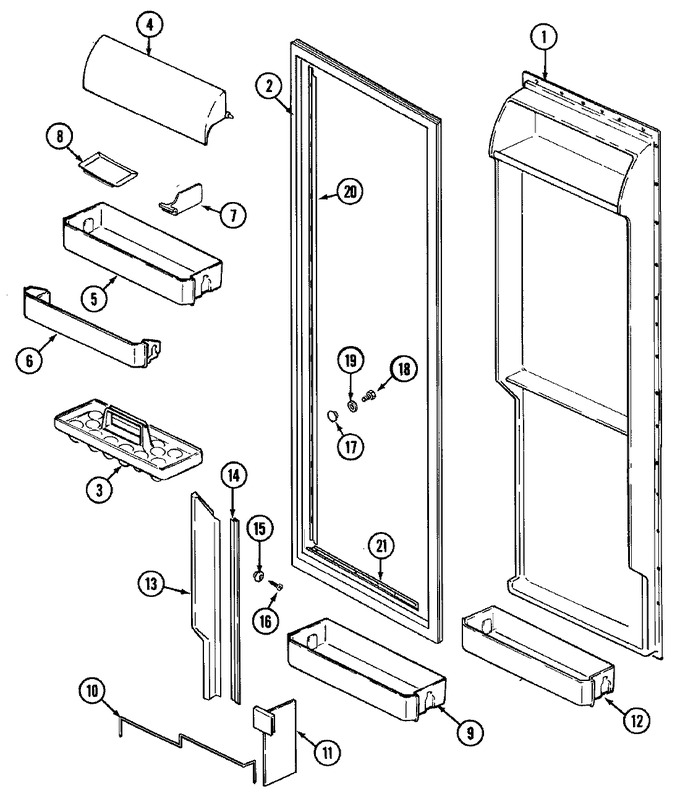

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001352		Liner, F.f. Door	10	Appelez-nous	-
1	61001353		Insulation, Liner Support	10	Appelez-nous	-
1	65275-5		Screw	10	Appelez-nous	-
1	61001364		Insulation, Liner Support	10	Appelez-nous	-
1	61001354		Insulation, Liner Support	10	Appelez-nous	-
2	70024-4		Gasket, F.f. Door (wht)	10			$ 184.29
3	60066-1		Tray, Egg	10	Appelez-nous	-
4	61001355		Door, Dairy	10	Appelez-nous	-
5	61001356		Shelf, Pick-off	10	Appelez-nous	-
6	61001357		Front, Pick-off	10	Appelez-nous	-
7	69759-2		Organizer	10	Appelez-nous	-
8	29936-2		Tray, Butter	10	Appelez-nous	-
9	61001358		Shelf, Pick-off	10	Appelez-nous	-
10	61001359		Retainer, Bottle	10	Appelez-nous	-
11	61001360		Organizer, Shelf	10	Appelez-nous	-
12	61001361		Shelf, Pick-off	10	Appelez-nous	-
13	61001362		Dyke, Door	10	Appelez-nous	-
14	61001363		Gasket, Door Dyke	10	Appelez-nous	-
15	61001350		Stud, Pick-off Shelf	10	Appelez-nous	-
16	WP98165		Screw   (Replaces: 61001351)	10			$ 7.20
17	65660-2		Stud, Pick-off Shelf	10	Appelez-nous	-
18	WP90767		Screw   (Replaces: 400014-1)	10		Immediately	$ 7.04
19	420028-1		Washer	10	Appelez-nous	-
20	69992-1		Retainer, Gasket	10	Appelez-nous	-
21	69992-2		Retainer, Gasket	10	Appelez-nous	-
