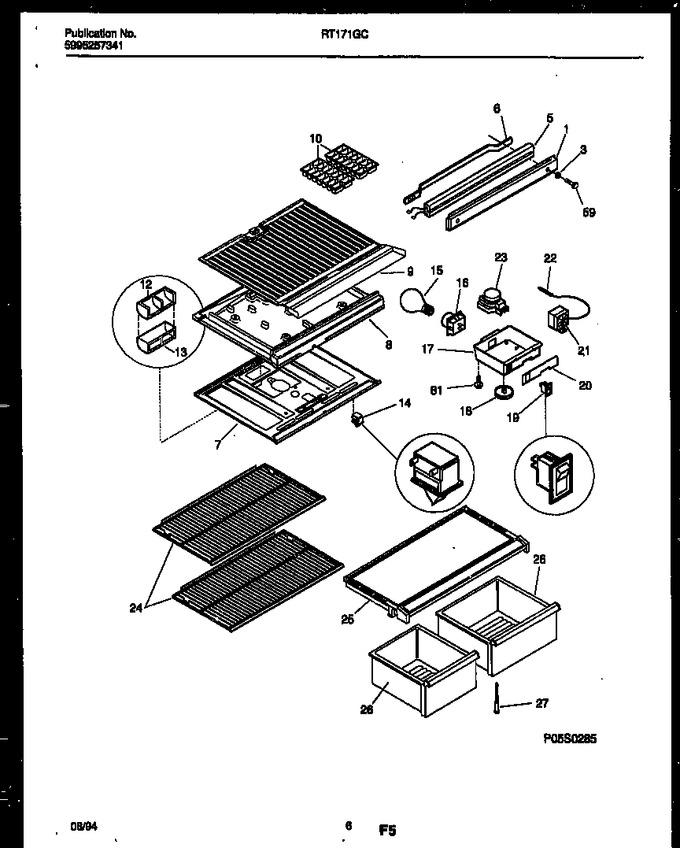

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5316205109 | Mullion, Wheat |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308000111 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5303212521 | Top Panel-refr, W/ Snap Bushing |
|
- | |||||
| 8 | 5308000143 | Divider, Styrofoam |
|
- | |||||
| 9 | 5316191901 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic, (2) |
|
Immediately | $ 6.07 | ||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5317465503 | Box-control |
|
- | |||||
| 18 | 5317478101 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | G175003 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | G168209-04 | Shelf-sliding, Refr, (2) |
|
- | |||||
| 25 | 5316190102 | Cover-crisper Pan |
|
- | |||||
| 26 | 5316190201 | Pan-crisper, (2) |
|
- | |||||
| 27 | 5303206506 | Support-crisper Cvr, Adjustable |
|
- | |||||
| 50 | 5303205987 | Screw-hinge/mullion, Hex Washer Head, 10-24(23) X 7/8, |
|
$ 48.41 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *10223 | 08000053 | Fillet-freezer Bottom (rh) |
|
- | |||||
| *10223 | 5300162177 | Fillet-freezer Bottom (lh) |
|
- | |||||
| 17A | 08016567 | Nut-anchor, Control Box Mtg (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8A | 08007102 | Harness-wiring, Control/divider |
|
- |
