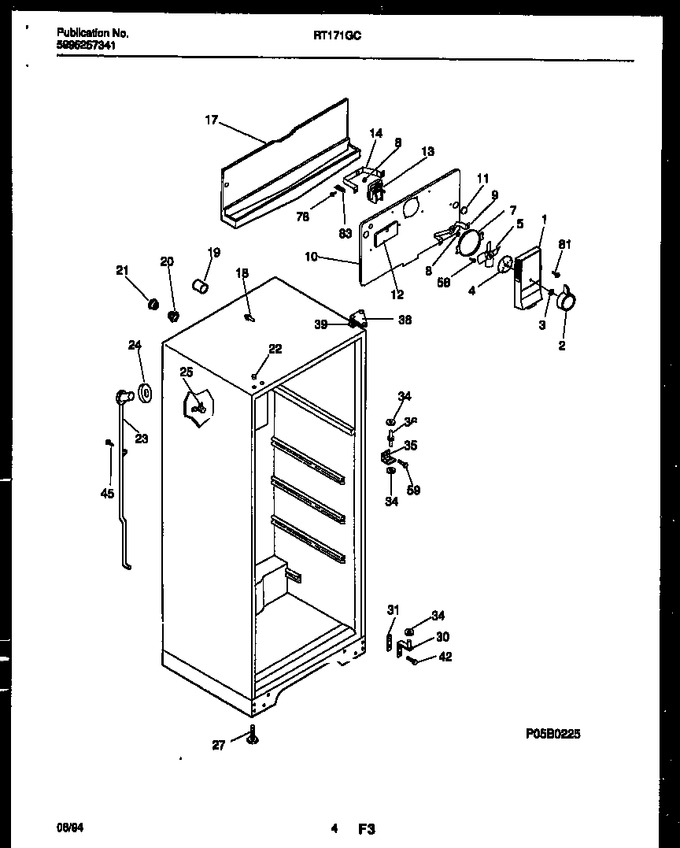

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308000063		Cover-fan		Appelez-nous	-
2	5316266315		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	5303001331		Damper-fan Cover				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	5316205001		Cover-evap Coil		Appelez-nous	-
11	5303203044				Appelez-nous	-
12	5308013636		Plug-decorative, Ice Maker Holes		Appelez-nous	-
13	5300158289		Motor-evap Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	5300170071		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Plug-button, White, Upr Hinge Holes				$ 2.60
23	5315552902		Tube-drain, W/ Seal Ring		Appelez-nous	-
24	5308000057		Seal Ring, Drain Tube		Appelez-nous	-
25	5308000056		Spout-drain Tube				$ 11.66
27	3018437		Screw-leveling		Appelez-nous	-
30	5303001271		Bracket-lower Hinge, W/hinge Pin				$ 102.38
31	5303001272		Shim-lower Hinge		Appelez-nous	-
34	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5300162384		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
42	241710601		Screw   (Replaces: 5303001479)				$ 13.46
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
78	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
*10222	530800007		Washer, .340 X .62 X .05, Nylon		Appelez-nous	-
*10222	5303016726		Grille-lower Front Panel		Appelez-nous	-
*10222	5308000091		Clip-grille				$ 14.57
*10222	5300154397		Plug-lower Grille		Appelez-nous	-
*10222	08000072		Shim, Center Hinge		Appelez-nous	-
*10222	5308016571		Plug-button, Cabinet Liner				$ 4.79
*10222	G000180137		Label-fan Cover		Appelez-nous	-
10A	5308000126		Screw-coil Cover, Cr Pan Head, 8-15(a) X 5/8 (non-illustrated)		Appelez-nous	-
25A	5303001361		Pin-push, Plastic (non-illustrated)		Appelez-nous	-
30A	5308012296		Tapping Plate/gusset				$ 47.44
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge (non-illustrated)				$ 47.44
