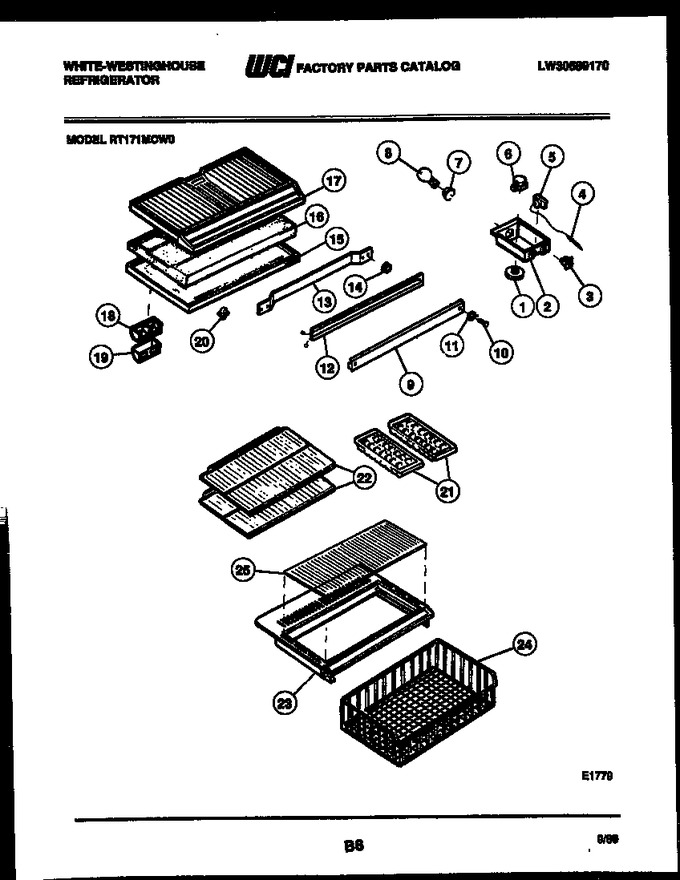

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201777		Knob-temp Control		Appelez-nous	-
2	3206130		Control Box		Appelez-nous	-
3	3206129		Switch-energy Saver		Appelez-nous	-
4	3018891		Hsg-cont Cap Tube		Appelez-nous	-
5	3018894		Control-temperature		Appelez-nous	-
6	G187484		Timer-defrost		Appelez-nous	-
7	08000815		Light Socket		Appelez-nous	-
8	3001179		Light Bulb		Appelez-nous	-
9	3206121		Mullion, White		Appelez-nous	-
10	3206134		Screw-mullion (4)		Appelez-nous	-
11	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
12	3206120		Heater-mullion		Appelez-nous	-
13	G166709		Strap-mullion Mtg		Appelez-nous	-
14	3200464		Spacer-mullion Mtg (2)		Appelez-nous	-
15	3206185		Top Panel-refrig		Appelez-nous	-
16	3206186		Divider, Styrofoam		Appelez-nous	-
17	3206187		Bottom Panel - Frzr		Appelez-nous	-
18	3204206		Air Deflector		Appelez-nous	-
19	3001546		Cover-deflector		Appelez-nous	-
20	09918806		Light Switch		Appelez-nous	-
21	G156376-01		Ice Tray (2)		Appelez-nous	-
22	3206179		Shelf-sliding (2)		Appelez-nous	-
23	3206183		Cover-crisper (less Insert)		Appelez-nous	-
24	3206325		Basket-sliding		Appelez-nous	-
25	3206182		Insert-crisper Cover		Appelez-nous	-
*22199	3205266		Protector-edge (2)				$ 80.09
15A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
16A	3018900		Wiring Harness - Divider (non-illustrated)		Appelez-nous	-
2A	G187363		Screw		Appelez-nous	-
5A	G107080		Screw		Appelez-nous	-
6A	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
