SELECT A DIAGRAM

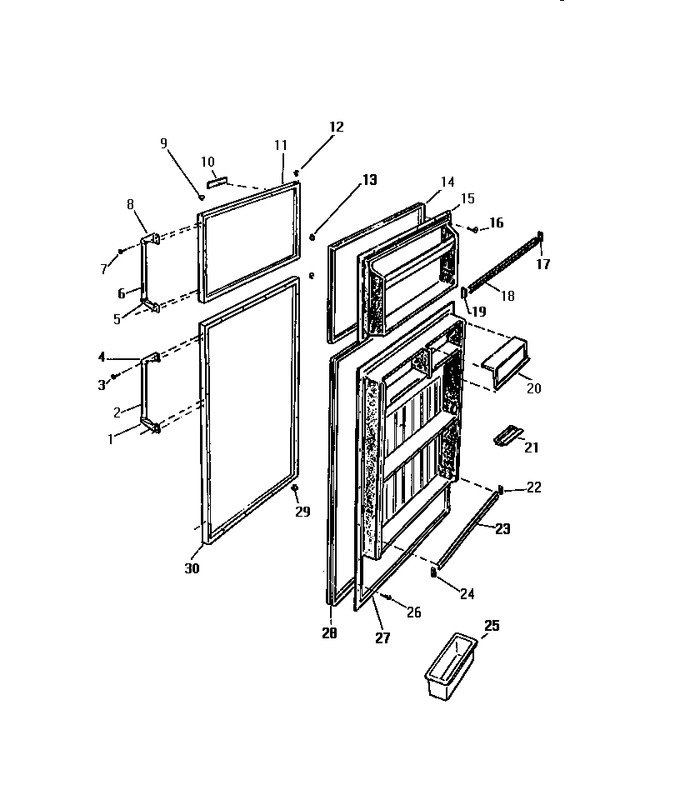

02 - Door


03 - Cabinet, Shelves, Divider, Fan Asse


04 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G175810		Cap		Appelez-nous	-
2	G175666-17		Handle		Appelez-nous	-
3	C505715		Screw		Appelez-nous	-
4	G175809		Cap		Appelez-nous	-
5	G175810		Cap		Appelez-nous	-
6	G175666-17		Handle		Appelez-nous	-
7	C505715		Screw		Appelez-nous	-
8	G175809		Cap		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
10	R304001		Naemplate		Appelez-nous	-
11	G177885-11		Outer Panel Text, Almond		Appelez-nous	-
12	G162889		Thimble		Appelez-nous	-
14	G180547-06		Gasket		Appelez-nous	-
15	G179881-01		Inner Panel		Appelez-nous	-
16	G162585		Screw		Appelez-nous	-
17	G176891-01		End Cap Rh		Appelez-nous	-
18	G490079-09		Front		Appelez-nous	-
19	G176892-01		End Cap Lh		Appelez-nous	-
20	G179967-01		Dairy Door (2)		Appelez-nous	-
21	G161079		Butter Dish		Appelez-nous	-
22	G176891-01		End Cap Rh		Appelez-nous	-
23	G490079-07		Front		Appelez-nous	-
24	G176892-01		End Cap Lh		Appelez-nous	-
25	G173948-17		Egg Container		Appelez-nous	-
26	G162585		Screw		Appelez-nous	-
27	Q179873-01		Inner Panel		Appelez-nous	-
28	G180547-07		Gasket		Appelez-nous	-
29	G162889		Thimble		Appelez-nous	-
30	G177889-11		Outer Panel Text, Almond		Appelez-nous	-
*60200	G178328-02		Trim		Appelez-nous	-
*60201	C460947		Tape		Appelez-nous	-
*60202	C69109		Insulation, Fiberglass Cut To Size 34`` X 48`` X 1/2`` Thk		Appelez-nous	-
*60203	C89110		Insulation Fiberglass, Cut To Size 34`` X 48`` X 1/2`` Thk		Appelez-nous	-
*60204	C69111		Insulation Fiberglass Cut To Size, 34`` X 48`` X 2`` Thk		Appelez-nous	-
*60205	C35536		Plastic Bag		Appelez-nous	-
12A	G152473		Seal		Appelez-nous	-
