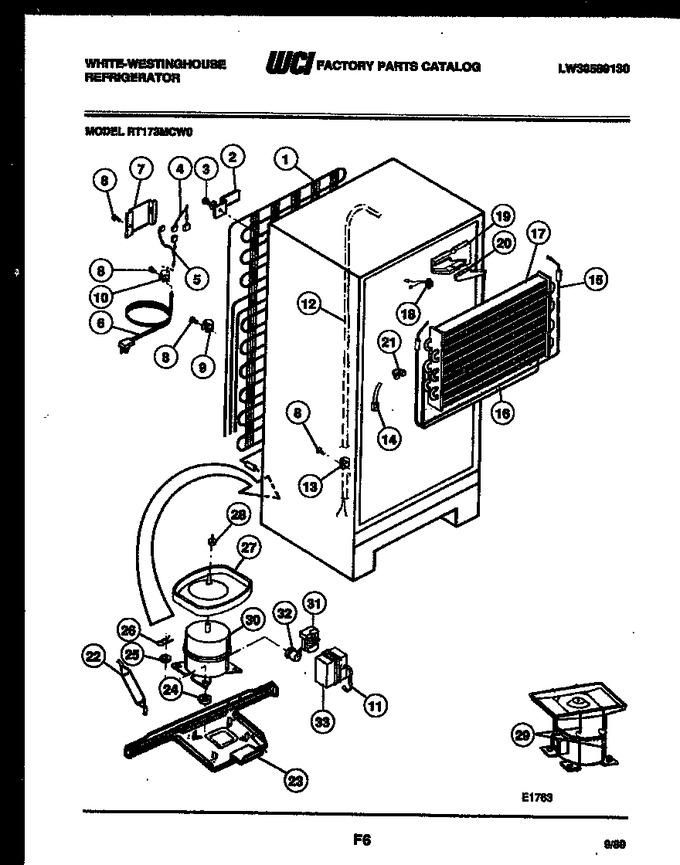

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178225		Condenser		Appelez-nous	-
2	3001342		Bracket-condenser Mtg (4)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	3018900		Wiring Harn - Control		Appelez-nous	-
5	3206113		Wiring Harness-compr		Appelez-nous	-
6	G162549-01		Service Cord		Appelez-nous	-
7	G183584		Cover, Wiring		Appelez-nous	-
8	G187009		Screw-8-15 X 1/2		Appelez-nous	-
9	G168978		Nylon Clamp		Appelez-nous	-
10	3001199		Clamp-harness (4)		Appelez-nous	-
11	G166057		Strap-term Cover		Appelez-nous	-
12	G177531		Heat Exchanger		Appelez-nous	-
13	08000133		Clamp		Appelez-nous	-
14	G165546		Strap-evap/heater (2)		Appelez-nous	-
15	08009754		Heater-defrost		Appelez-nous	-
16	G166511-02		Insulator-evaporator		Appelez-nous	-
17	G176909		Evaporator Coil		Appelez-nous	-
18	G162690-01		Thermostat, Defrost		Appelez-nous	-
19	G185299		Insulation Block Rs		Appelez-nous	-
20	G185276		Insulation Plug Rs		Appelez-nous	-
21	G188375		Insulation Block Ls		Appelez-nous	-
22	3007351		Drier-filter		Appelez-nous	-
23	3206126		Plate-compr Mtg		Appelez-nous	-
24	08008778		Grommet (4)		Appelez-nous	-
25	G164634		Washer (3)		Appelez-nous	-
26	G163204		Clip (3)		Appelez-nous	-
27	G184715		Pan-defrost Drain		Appelez-nous	-
28	G164958		Lock Nut-pan Mtg		Appelez-nous	-
29	3916001		Pan Retainer Kit-service Compr		Appelez-nous	-
30	3916020		Compressor W/ Electricals-service		Appelez-nous	-
31	216594300		Relay   (Replaces: 3204486)				$ 28.92
32	3204487		Overload		Appelez-nous	-
33	3006411		Cover-terminal		Appelez-nous	-
*21862	3916557		Hot Tube Repair Kit-svce				$ 360.78
23A	08000096		Screw-mtg (non-illustrated)		Appelez-nous	-
27A	G169873		Sound Tape-pan (non-illustrated)		Appelez-nous	-
3A	G164820		Washer-no. 10 Ext Tooth (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
