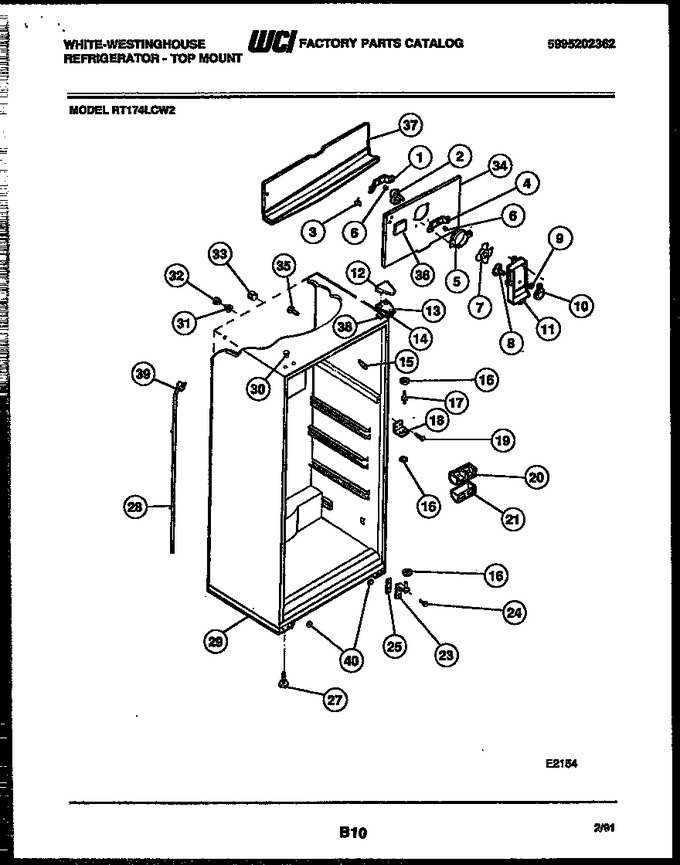

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303205119		Bracket, Rear		Appelez-nous	-
2	5300158289		Motor, Fan			Immediately	$ 149.94
3	5308000107		Connector Bracket				$ 33.23
4	5303001226		Bracket-front		Appelez-nous	-
5	5308000124		Orifice Ring				$ 53.58
6	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
7	5308000010		Fan Blade			Immediately	$ 49.03
8	5303001331		Damper				$ 31.71
9	5303001028		Push Nut - Damper		Appelez-nous	-
10	5316266315		Knob-damper Control		Appelez-nous	-
11	5349007601		Cover-fan		Appelez-nous	-
12	5308012933		Hinge Cover, Almond		Appelez-nous	-
13	5308012843		Hinge-bracket Upper				$ 71.47
14	5308000007		Washer-hinge (2)		Appelez-nous	-
15	5303202340		Corner Trim-almond		Appelez-nous	-
16	5308000186		Washer-hinge (3)			Immediately	$ 6.02
17	5308000184		Pin-center Hinge				$ 8.87
18	5303001369		Bracket- Center Hinge		Appelez-nous	-
19	5308012258		Screw				$ 2.25
20	5308000071		Air Deflector		Appelez-nous	-
21	5303001546		Cover, Deflector		Appelez-nous	-
23	5303212489		Bracket-lower Hinge		Appelez-nous	-
24	5303001320		Screw - Mounting (6)		Appelez-nous	-
25	5303212488		Shim-lower Hinge				$ 5.25
27	5303212922		Leveling Leg (2)				$ 10.71
28	5303210377		Drain Tube & Seal Ring Assy				$ 109.31
29	5303269889		Cabinet Base		Appelez-nous	-
30	5303001389		Plug-hinge-almd (2)		Appelez-nous	-
31	5303001286		Ferrule-inner		Appelez-nous	-
32	5303001287		Ferrule-outer		Appelez-nous	-
33	5303001198		Tube, Rubber (2)		Appelez-nous	-
34	3001527		Cover-evaporator Coil (2)		Appelez-nous	-
35	5308000097		Support, Cover (2)		Appelez-nous	-
36	5303018193		Plug-decorative		Appelez-nous	-
37	08010005		Drain Trough		Appelez-nous	-
38	5303001037		Shim - Upper Hinge				$ 12.39
39	5303207353		Ring - Seal				$ 6.81
40	5303212923		Button Plug (2)		Appelez-nous	-
11A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11B	G000187640		Label-fan Cover		Appelez-nous	-
13A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
13B	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
23A	5303212596		Tapping Plate/gusset, Lh (non-illustrated)		Appelez-nous	-
23B	5303212597		Tapping Plate/gusset, Rh (non-illustrated)		Appelez-nous	-
23C	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
28A	5308000056		Spout-drain Tube (non-illustrated)				$ 11.66
28B	5303001361		Push Pin-drain-spout (non-illustrated)		Appelez-nous	-
34A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
34B	5303208309		Button Plug-short Test Hole (non-illustrated)				$ 45.50
38A	G187599		Plug-freezer Liner (5) (non-illustrated)		Appelez-nous	-
38B	5304509705		Grommet-shelf Mtg-rh (4) (non-illustrated)   (Replaces: 5303001609)				$ 10.01
38C	5304500407		Grommet-shelf Mtg-lh (4) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
3A	5303210353		Screw-mounting (non-illustrated)		Appelez-nous	-
5A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
