SELECT A DIAGRAM

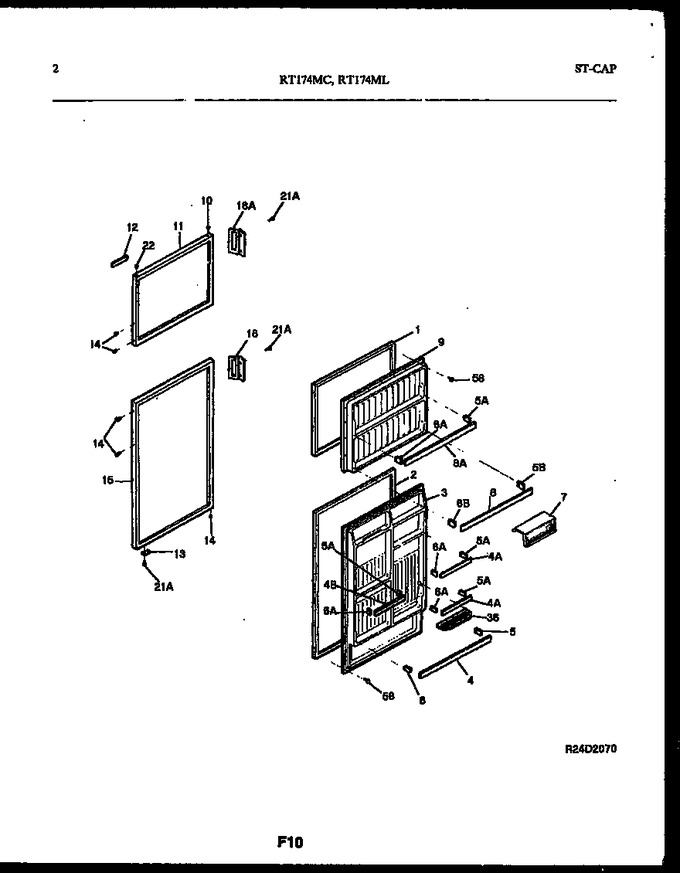

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 218730603 | Gasket-refr Door, Magnetic (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 3206369 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3206152 | Rack-door, Full-width, Wide |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 3206222 | Door-dairy, Lh |
|
- | |||||
| 7 | 3206149 | Door-dairy, Rh |
|
- | |||||
| 8 | 3206163 | Rack-door, Full Width, Wide |
|
- | |||||
| 9 | 3206160 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916567 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 3206159 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916562 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 3206148 | Handle-door |
|
- | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 36 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *62532 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 3206158 | Handle-door |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 3206191 | Rack-door, Short, Narrow, (2) |
|
- | |||||
| 4B | 3206190 | Rack-door, Medium, Narrow |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 5B | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 6B | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 8A | 3206164 | Rack-door, Full-width, Narrow |
|
- |
