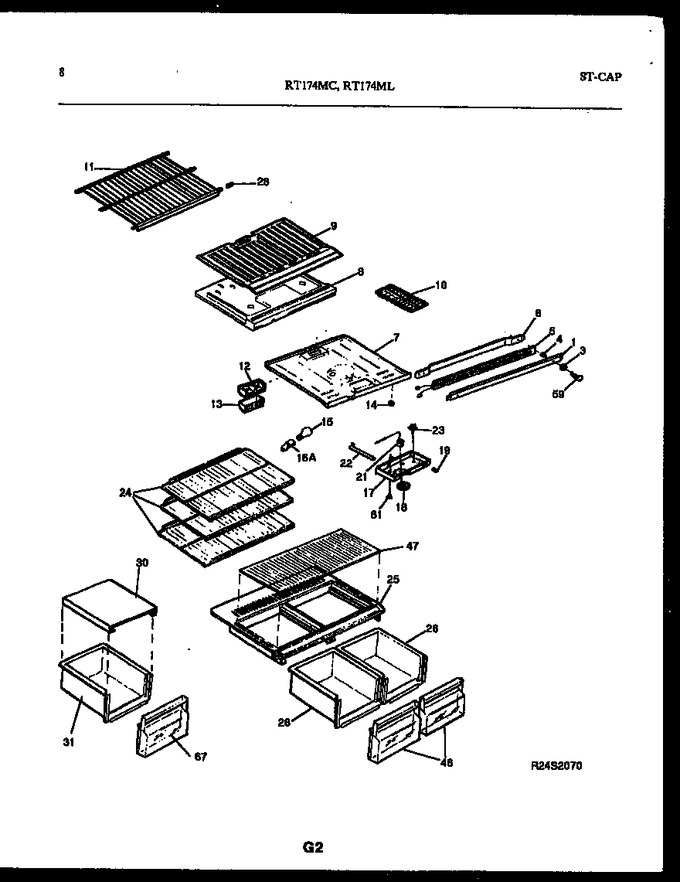

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206121		Mullion, White		Appelez-nous	-
3	5308003607		Washer, No. 10 Steel, 7/23 X 7/16 Od				$ 1.00
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	3206120		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	3206185		Top Panel - Refr		Appelez-nous	-
8	3206186		Divider, Styrofoam		Appelez-nous	-
9	3206187		Bottom Panel - Frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303283107		Shelf-freezer				$ 155.82
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	3206130		Box-control		Appelez-nous	-
18	5303209251		Knob-temp Control		Appelez-nous	-
19	3206129		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303283106		Shelf-sliding, Refr, (3)		Appelez-nous	-
25	3206183		Cover-crisper Pan, With Beam, Less Insert		Appelez-nous	-
26	3206180		Pan-crisper, (2)				$ 155.70
28	3201150		Cap-protector				$ 4.57
30	3206350		Cover-meat Pan		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8B	3205266		Protector-edge (non-illustrated)				$ 80.09
