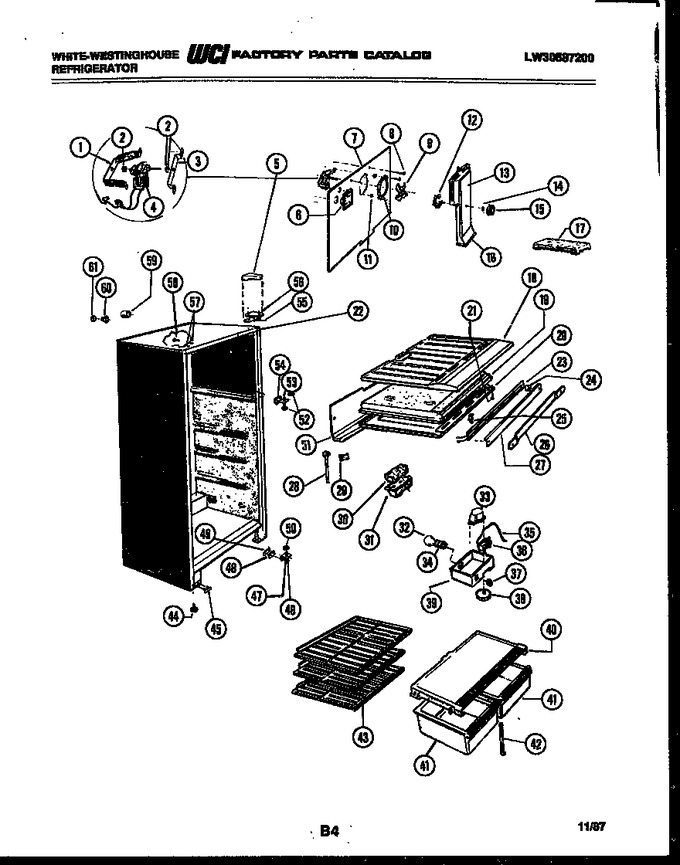

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185303 | Bracket-mtr Mtg Rear |
|
- | |||||
| 2 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 3 | G185302 | Bracket-mtr Mtg Front |
|
- | |||||
| 4 | G158289 | Motor |
|
- | |||||
| 5 | G183558-09 | Cover-hinge Weat |
|
- | |||||
| 6 | G162827-18 | Plug-button Decor |
|
- | |||||
| 7 | G176797 | Cover-coil |
|
- | |||||
| 8 | G187363 | Screw |
|
- | |||||
| 9 | G174705 | Fan |
|
- | |||||
| 10 | G167217 | Ring, Fan Orifice |
|
- | |||||
| 11 | G167542 | Nut-speed (2) |
|
- | |||||
| 12 | G162661 | Damper Fan Cover |
|
- | |||||
| 13 | G187640 | Label-fan Cover |
|
- | |||||
| 14 | G162662 | Nut, Push |
|
- | |||||
| 15 | G162663-15 | Knob-damper Control |
|
- | |||||
| 16 | G490076-01 | Cover-fan |
|
- | |||||
| 17 | G156376-01 | Tray-ice (2) |
|
- | |||||
| 18 | G490022-01 | Bottom-frzr |
|
- | |||||
| 19 | G176774 | Divider |
|
- | |||||
| 20 | G490021-01 | Top-refrig |
|
- | |||||
| 21 | G162673 | Screw (3) |
|
- | |||||
| 22 | G179684-09 | Trim-cab Corner-weat |
|
- | |||||
| 23 | G177255 | Heater, Mullion |
|
- | |||||
| 24 | G490082 | Spacer, Mullion (2) |
|
- | |||||
| 25 | G162672 | Switch Light |
|
- | |||||
| 26 | G166709 | Strap-mullion |
|
- | |||||
| 27 | G490086-09 | Mullion-weat |
|
- | |||||
| 28 | G184920-01 | Tube, Drain |
|
- | |||||
| 29 | G162179 | Spout, Drain |
|
- | |||||
| 30 | G162675 | Deflector Air |
|
- | |||||
| 31 | G162178 | Cover, Air Deflector |
|
- | |||||
| 32 | G165723 | Bulb, Light |
|
- | |||||
| 33 | G187484 | Timer-defrost |
|
- | |||||
| 34 | G168302 | Socket Light |
|
- | |||||
| 35 | G142176-43 | Sleeve-plastic |
|
- | |||||
| 36 | G162205-11 | Control, Temperature |
|
- | |||||
| 37 | G178402-01 | Switch Slide |
|
- | |||||
| 38 | G490107-02 | Knob-temp Control |
|
- | |||||
| 39 | G176722-01 | Box-control |
|
- | |||||
| 40 | G490016-03 | Cover-crisper |
|
- | |||||
| 41 | G490015-01 | Pan-crisper (2) |
|
- | |||||
| 42 | G166310-04 | Support-crisper Cover |
|
- | |||||
| 43 | G179415-01 | Shelf-sliding (3) |
|
- | |||||
| 44 | G185713 | Screw, Leveling (2) |
|
- | |||||
| 45 | G166912 | Plug-button |
|
- | |||||
| 46 | G191474 | Bracket-lower Hinge |
|
- | |||||
| 47 | G166505 | Pin, Lower Hinge |
|
- | |||||
| 48 | G163203 | Shim, Lower Hinge |
|
- | |||||
| 49 | G157591 | Plate, Tapping (2) |
|
- | |||||
| 50 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 51 | G490043 | Trough-drain |
|
- | |||||
| 52 | G164355 | Washer-nylon (3) |
|
- | |||||
| 53 | G142220 | Pin |
|
- | |||||
| 54 | G163207 | Bracket-center Hinge |
|
- | |||||
| 55 | G183861 | Shim Top Hinge |
|
- | |||||
| 56 | G183714 | Bracket, Top Hinge |
|
- | |||||
| 57 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 58 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 59 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 60 | G174733 | Ferrule, Inner |
|
- | |||||
| 61 | G174734 | Ferrule Outer |
|
- | |||||
| *38164 | G174818 | Harness, Divider |
|
- | |||||
| 39A | G180105 | Label-control Box (non-illustrated) |
|
- | |||||
| 44A | G183073 | Nut Anchor (2) (non-illustrated) |
|
- |
