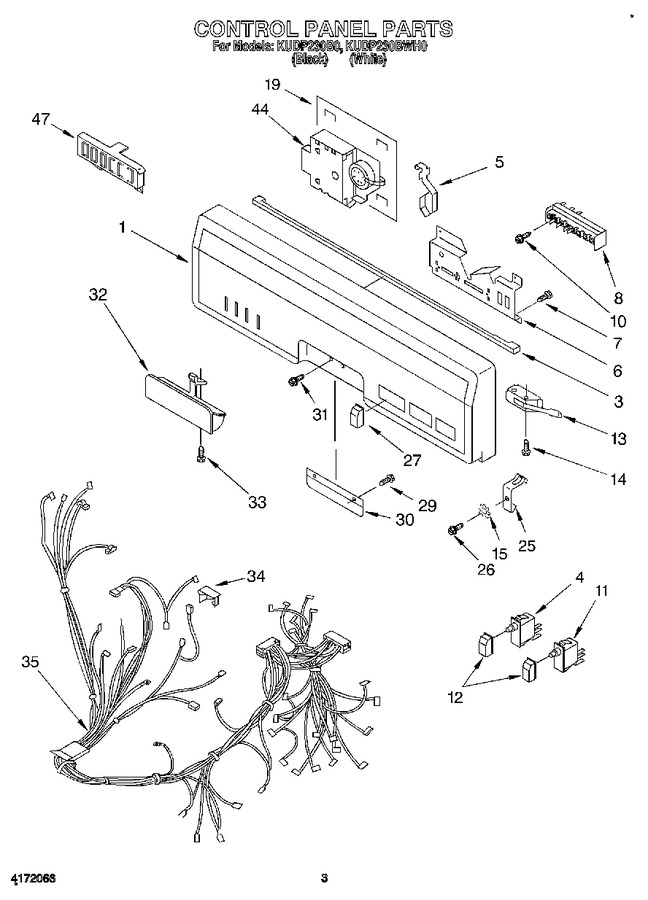

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9741943 | Control Panel, (includes Insert, No.3 Seal, & No.30 Bracket (black Model) |
|
- | |||||
| 1 | 9741944 | Control Panel, (includes Insert, No.3 Seal, & No.30 Bracket (white Model) |
|
- | |||||
| 3 | 9741864 | Seal, Control Panel |
|
- | |||||
| 4 | 9741877 | Switch, Time Delay |
|
- | |||||
| 5 | 9742256 | Spring, Switch Cancel |
|
- | |||||
| 6 | 9741861 | Bracket, Program Switch |
|
- | |||||
| 7 | 4159373 | Screw, 8-18 X 1/2 |
|
- | |||||
| 8 | 9741812 | Switch, Program |
|
- | |||||
| 10 | 4159428 | Screw, 6-32 X 3/8 |
|
- | |||||
| 11 | 9741876 | Switch, Start |
|
- | |||||
| 12 | 9742238 | Button, Time Delay (2) (white Model) |
|
- | |||||
| 12 | 9742237 | Button, Time Delay (2) (black Model) |
|
- | |||||
| 13 | 4160658 | Switch, Interlock |
|
- | |||||
| 14 | W11596033 | Screw (2) (Replaces: 9741052) |
|
$ 12.20 | |||||
| 15 | 4159493 | Lockwasher |
|
$ 21.02 | |||||
| 19 | 9741378 | Barrier, Timer |
|
- | |||||
| 25 | 9742169 | Clip, Grounding (front Panel) |
|
- | |||||
| 26 | 9741365 | Screw |
|
- | |||||
| 27 | 9742242 | Button, Program Switch (7) (white Model) |
|
- | |||||
| 27 | 9742241 | Button, Program Switch (7) (black Model) |
|
- | |||||
| 29 | 4159364 | Screw |
|
- | |||||
| 30 | 4171364 | Bracket, Support |
|
- | |||||
| 31 | 4172012 | Screw (black Model) |
|
- | |||||
| 31 | WP912618 | Screw (white Model) (Replaces: 4159335) |
|
$ 6.98 | |||||
| 32 | 9741857 | Handle, Latch (black Model) |
|
- | |||||
| 32 | 9741858 | Handle, Latch (white Model) |
|
- | |||||
| 33 | 9741328 | Screw, 10-32 X 5/8 |
|
- | |||||
| 34 | 4163372 | Clip, Harness Guide |
|
- | |||||
| 35 | 4159349 | Screw, 8-18 X 3/8 |
|
- | |||||
| 35 | 9741883 | Wiring Harness (main) |
|
- | |||||
| 44 | 9741769 | Timer Assembly |
|
- | |||||
| 47 | 9742224 | Light Package Assembly |
|
- | |||||
| LIT9742003 | Guide, Use & Care |
|
- | ||||||
| LIT9741871 | Tech Sheet |
|
- | ||||||
| 799640 | Kit, Epoxy Patch (white) |
|
- | ||||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | |||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 4171635 | Almond (l.h.) |
|
- | ||||||
| 4171634 | White (l.h.) |
|
- | ||||||
| 4171633 | Almond (r.h.) |
|
- | ||||||
| 4171632 | White (r.h.) |
|
- | ||||||
| 4171476 | Adjustable Kickboard Kit |
|
- | ||||||
| 4162841 | Wood Top Kit |
|
- | ||||||
| 9741358 | Drain Hose Assembly |
|
- | ||||||
| LIT9742211 | Energy Guide |
|
- | ||||||
| LIT9742114 | Instructions, Installation |
|
- | ||||||
| 4172056 | Insulation Kit (kit Includes Tub, Kickboard, And Lower Panel Insulation) |
|
- | ||||||
| 675506 | Tine Tip Repair Kit (blue-enough For Two Complete Dishracks) |
|
- | ||||||
| W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 40.85 |
