02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

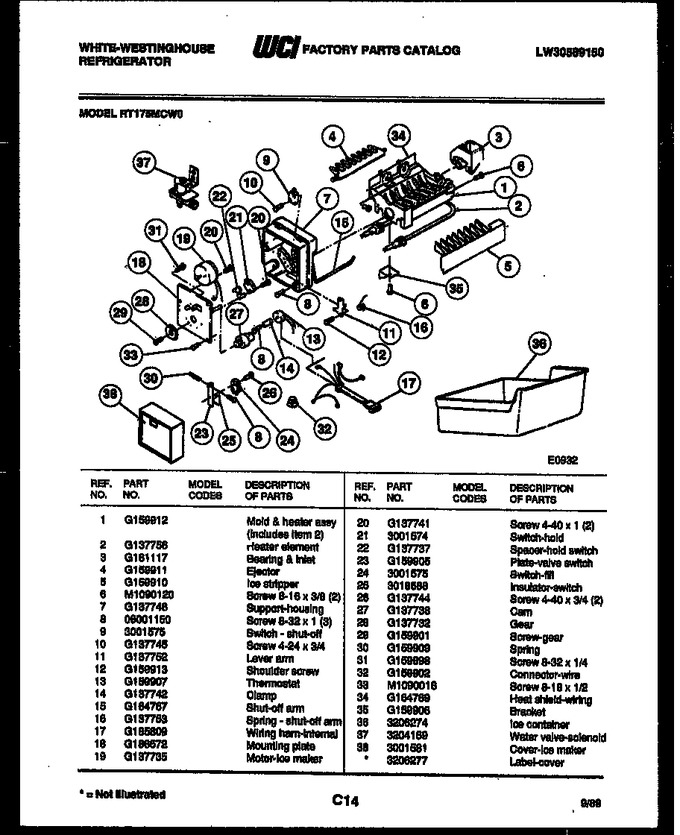

1	G159912		Mold & Heater Assy Includes Item 2		Appelez-nous	-
2	G137756		Heater Element		Appelez-nous	-
3	G181117		Bearing & Inlet		Appelez-nous	-
4	G159911		Ejector		Appelez-nous	-
5	G159910		Ice Stripper		Appelez-nous	-
6	M1090120		Screw 8- 16 X 3/8 (2)		Appelez-nous	-
7	G137748		Support-housing		Appelez-nous	-
8	08001150		Screw 8-32 X 1 (3)		Appelez-nous	-
9	3001575		Switch - Shut-off		Appelez-nous	-
10	G137745		Screw 4, 24 X 3/4		Appelez-nous	-
11	G137752		Lever Arm		Appelez-nous	-
12	G159913		Shoulder Screw		Appelez-nous	-
13	G159907		Thermostat		Appelez-nous	-
14	G137742		Clamp		Appelez-nous	-
15	G164767		Shut-off Arm		Appelez-nous	-
16	G137753		Spring, Shut Off Arm		Appelez-nous	-
17	G185809		Wiring Harn-internal		Appelez-nous	-
18	G186572		Mounting Plate		Appelez-nous	-
19	G137735		Motor-ice Maker		Appelez-nous	-
20	G137741		Screw 4-40 X 1 (2)		Appelez-nous	-
21	3001574		Switch-hold		Appelez-nous	-
22	G137737		Spacer-hold Switch		Appelez-nous	-
23	G159905		Plate, Valve Switch		Appelez-nous	-
24	3001575		Switch-fill		Appelez-nous	-
25	3018588		Insulator-switch		Appelez-nous	-
26	G137744		Screw 4-40 X 3/4 (2)		Appelez-nous	-
27	G137738		Cam		Appelez-nous	-
28	G137732		Gear		Appelez-nous	-
29	G159901		Screw-gear		Appelez-nous	-
30	G159909		Spring		Appelez-nous	-
31	G159898		Screw 8-32 X 1/4		Appelez-nous	-
32	G159902		Connector, Wire		Appelez-nous	-
33	M1090016		Screw 8-18 X 1/2		Appelez-nous	-
34	G164769		Heat Shield-wiring		Appelez-nous	-
35	G159906		Bracket		Appelez-nous	-
36	3206274		Ice Container		Appelez-nous	-
37	3204159		Water Valve-solenoid		Appelez-nous	-
38	3001581		Cover-ice Maker		Appelez-nous	-
*21586	3206277		Label-cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
