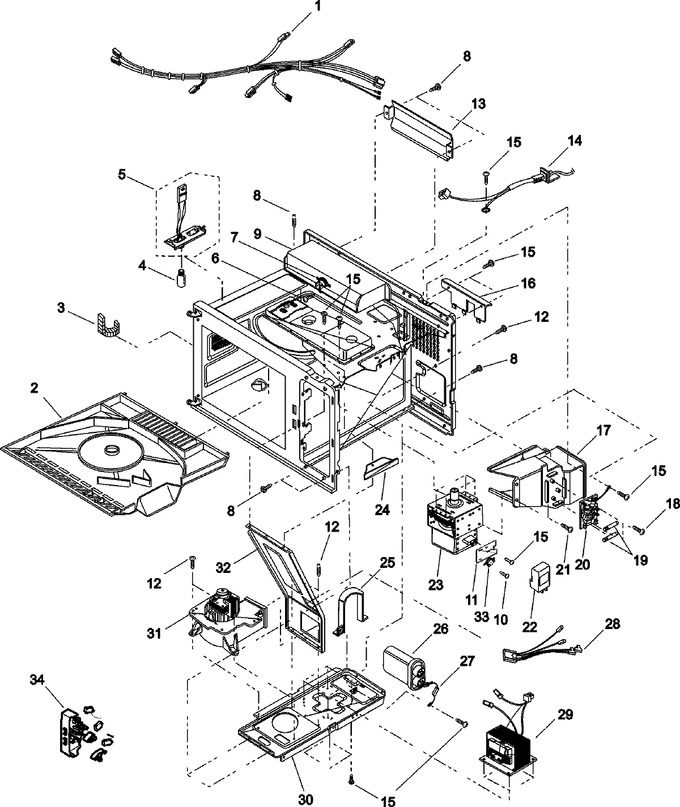

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001646		Harness, Main		Appelez-nous	-
2	53001556		Grease Shield		Appelez-nous	-
3	53001610		Gasket		Appelez-nous	-
4	53001557		Lamp		Appelez-nous	-
5	53001558		Lamp Socket / Bracket Assy		Appelez-nous	-
6	R0654030		Screw, Pan Hd S/tap		Appelez-nous	-
7	W10864742		Thermal Cut Out- Cavity   (Replaces: 53001561)				$ 76.01
8	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
9	53001559		Duct, Outlet-top		Appelez-nous	-
10	R0131307		Screw Tapping,pan Head		Appelez-nous	-
11	53001643		Bracket- Thermostat		Appelez-nous	-
12	R0654183		Screw, Truss Hd		Appelez-nous	-
13	53001620		Air Deflector				$ 10.58
14	53001580		Power Cord		Appelez-nous	-
15	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
16	53001621		Cover, Power Cord		Appelez-nous	-
17	53001563		Duct, Main		Appelez-nous	-
18	53001462		Screw, Pan Head		Appelez-nous	-
19	M0805106		Fuse, 10 Amp				$ 3.70
20	53001564		Fuse Block / Filter Assy		Appelez-nous	-
21	R0654180		Screw, Pan Hd		Appelez-nous	-
22	53001565		Filter Assembly				$ 27.81
23	W10859575		Magnetron   (Replaces: 53001581)				$ 361.62
24	53001622		Bracket		Appelez-nous	-
25	53001623		Bracket, Capacitor				$ 8.42
26	53001582		Capacitor- 1.05 Mf		Appelez-nous	-
27	53001583		Diode- Red Sleeve		Appelez-nous	-
28	53001624		Harness- Transformer Primary		Appelez-nous	-
29	53001584		Transformer Hv		Appelez-nous	-
30	53001568		Base- Transformer		Appelez-nous	-
31	53001569		Blower Motor Assy		Appelez-nous	-
32	53001570		Guide, Air		Appelez-nous	-
33	53001560		Thermal Cut Out- Magnetron				$ 16.60
34	53001601		Switch Assy, Interlock		Appelez-nous	-
