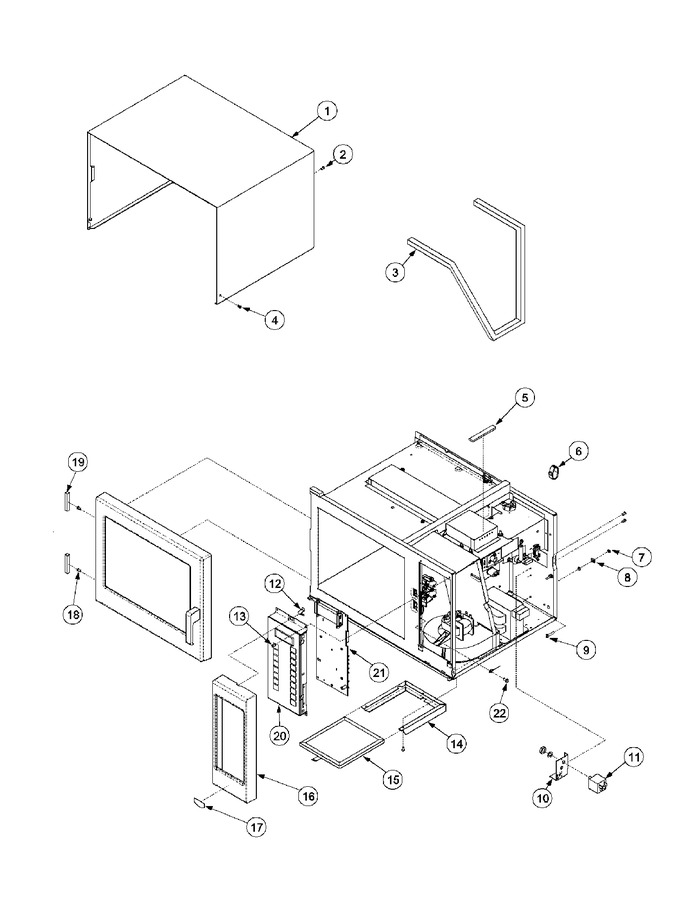

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	D7684903		Wrapper		Appelez-nous	-
002	M0231717		Screw, Tf		Appelez-nous	-
003	A3263907		Gasket - Each		Appelez-nous	-
004	M0231804		Screw, Tf		Appelez-nous	-
005	A4591129		Gasket K		Appelez-nous	-
006	M0118705		Clip, Guide		Appelez-nous	-
007	M0282021		Nut-keps		Appelez-nous	-
008	12152201		Washer-u Type		Appelez-nous	-
009	M0200843		Screw-mach		Appelez-nous	-
010	B5696109		Brkt, Line Filter		Appelez-nous	-
011	NLA		Line Filter Xx		Appelez-nous	-
012	B8379401		Clip		Appelez-nous	-
013	M0231717		Screw, Tf		Appelez-nous	-
014	D7740902		Bracket		Appelez-nous	-
014	M0230017		Screw,tc		Appelez-nous	-
015	10169101Q		Filter, Preform		Appelez-nous	-
016	59001623		Side Escutcheon-rfs511sw2		Appelez-nous	-
016	NLA		Escutcheon,side		Appelez-nous	-
017	59001048		Label, Rfs511		Appelez-nous	-
017	59001050		Label, Dfs11e		Appelez-nous	-
017	59001051		Label, Urfs511		Appelez-nous	-
018	WP12990527		Screw   (Replaces: M0229716)			Immediately	$ 7.15
019	A3263904		Gasket		Appelez-nous	-
020	R0000358		Assy, Touch Panel		Appelez-nous	-
020	R9900591		Assy, Touch Panel		Appelez-nous	-
020	R9900592		Assy, Touch Panel		Appelez-nous	-
021	12470103		Board, Hv/lv		Appelez-nous	-
021	12495218Q		Board,hv/lv-amana Prog		Appelez-nous	-
022	M0231717		Screw, Tf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
