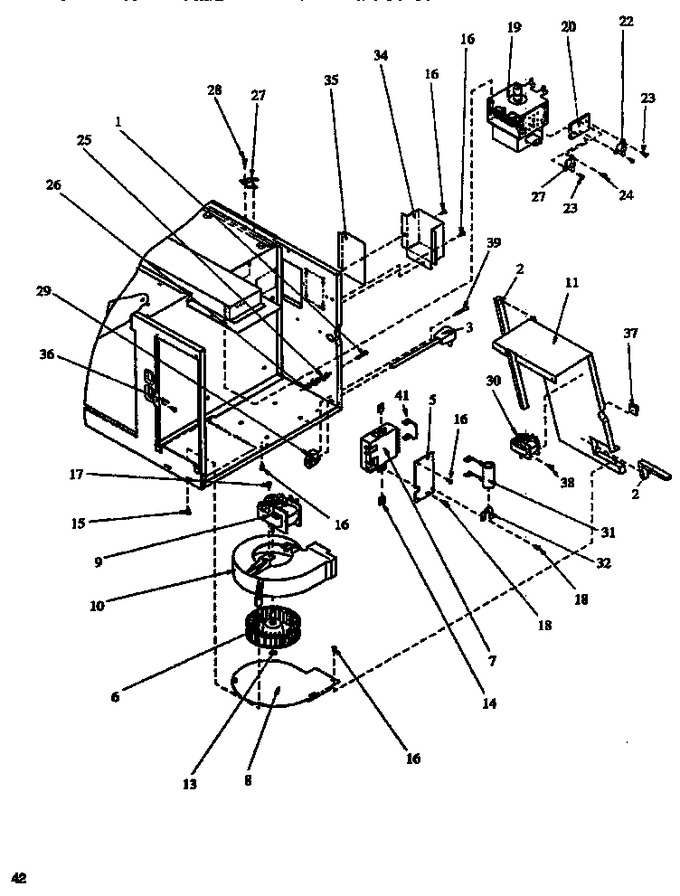

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Page 1
02 - Page 2
03 - Page 3
04 - Page 4
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0293502 | Stud-self Clinch |
|
- | |||||
| 2 | A3030302 | Gasket |
|
- | |||||
| 3 | B5669013 | Cord-power |
|
- | |||||
| 5 | B8370602 | Bracket S.w. Mtg |
|
- | |||||
| 6 | C8793501 | Blower Wheel |
|
- | |||||
| 7 | 10403503 | Switch, Interlock Assy |
|
- | |||||
| 8 | C8942501 | Brkt Scroll |
|
- | |||||
| 9 | D7670302 | Motor, Blower |
|
- | |||||
| 10 | D7684601 | Scroll, Blower |
|
- | |||||
| 11 | D7685409 | Blower Partition,black E Ct |
|
- | |||||
| 13 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 14 | M0288213 | Clip |
|
- | |||||
| 15 | M0230017 | Screw,tc |
|
- | |||||
| 16 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 17 | M0254713 | Screw |
|
- | |||||
| 18 | M0216517 | Screw |
|
- | |||||
| 19 | C8761716 | Magnetron |
|
- | |||||
| 20 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 22 | B5684113 | Protector, Thermal |
|
- | |||||
| 23 | M0232012 | Screw |
|
- | |||||
| 24 | M0229916 | Screw T.c |
|
- | |||||
| 25 | A3197701 | Washer-u Type |
|
- | |||||
| 26 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 27 | B5684111 | Thermal Protector |
|
- | |||||
| 28 | M0225929 | Screw |
|
- | |||||
| 29 | M0370009 | Relief- Strain |
|
- | |||||
| 31 | C8981602 | Resistor Assy |
|
- | |||||
| 32 | C8985901 | Bracket |
|
- | |||||
| 35 | B8370702 | Cover, Light |
|
- | |||||
| 36 | M0251002 | Screw |
|
- | |||||
| 37 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 39 | M0211008 | Screw |
|
- | |||||
| 40 | M0275560 | Rtv (blk) |
|
- | |||||
| 41 | D7726599 | Wire Hv Jumper |
|
- | |||||
| NI | 18QBP110H | Thermal Cutout (Replaces: B5684112) |
|
- |
