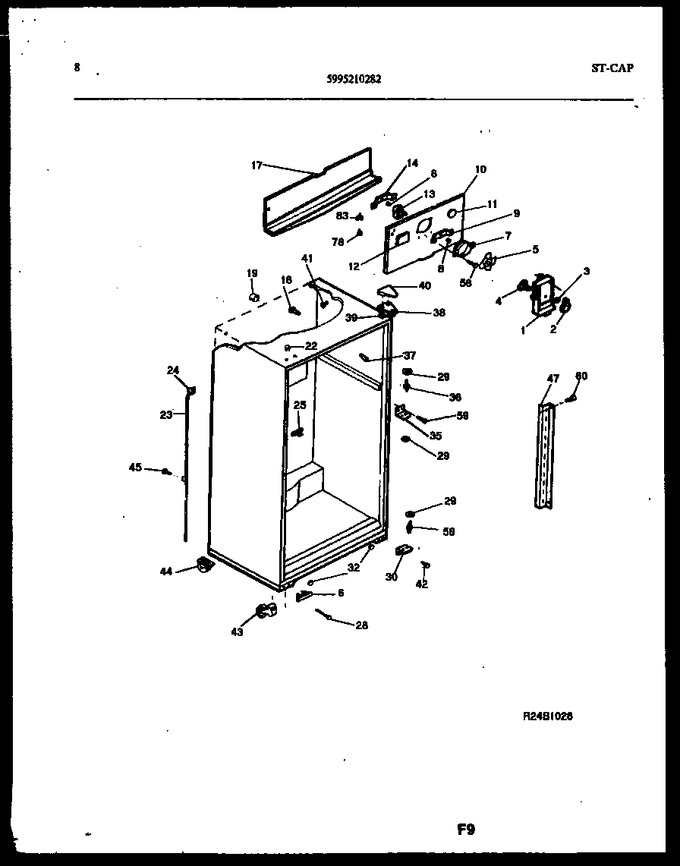

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202338		Trim, Cabinet Corner, Wheat (4)		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
40	3206103		Cover-upper Hinge, Wheat		Appelez-nous	-
41	5304509705		Grommet, Shelf Mtg   (Replaces: 5303001609)				$ 10.01
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
43	5300188673		Roller Assy-front (2)		Appelez-nous	-
44	3206237		Roller Assy Rear (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	3206202		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	3206134		Screw-hng/mull Mtg,acorn Hx Wsh Hd,10-24(23)x1		Appelez-nous	-
60	5308010253		Screw		Appelez-nous	-
78	5303210353		Screw-connector Brkt, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
83	5308000107		Bracket-connector				$ 33.23
*50559	5308016571		Button Plug-liner				$ 4.79
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
41A	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	5308009760		Roller, (2) (non-illustrated)		Appelez-nous	-
43B	5308009790		Spring-roller Adj, (2) (non-illustrated)				$ 4.30
43C	5308011326		Washer-adj Bolt, Nylon, (2)				$ 9.87
