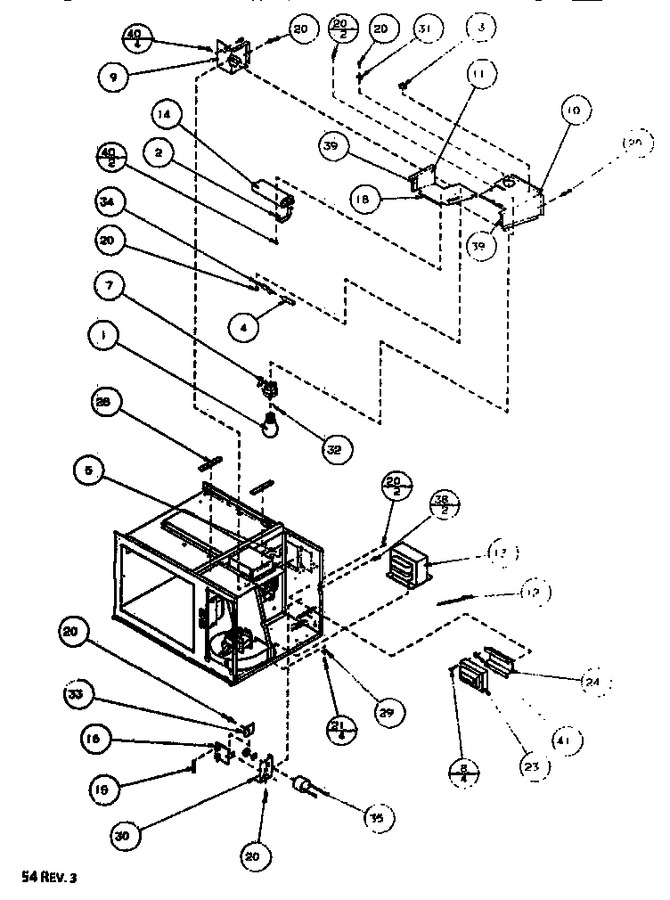

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002552		Bulb, Light(240)   (Replaces: A0282802)			Immediately	$ 10.58
2	A4055405		Strap, Capacitor		Appelez-nous	-
3	M0104102		Clip, Cord				$ 8.10
4	M0321039		Sleeve, Vinyle		Appelez-nous	-
5	B8367701		Window, Oven Light		Appelez-nous	-
7	B8376801		Socket, Light		Appelez-nous	-
8	M0218137		Screw		Appelez-nous	-
9	D7772101		Shield, Light		Appelez-nous	-
10	D7774002		Air Duct, Top		Appelez-nous	-
11	D7773902		Air Duct, Bottom		Appelez-nous	-
12	D7718037		Jumper Wire		Appelez-nous	-
12	D7718025		Jumper Wire		Appelez-nous	-
12	D7718016		Jumper Wire		Appelez-nous	-
13	D7686909		Transformer		Appelez-nous	-
14	D8547913		Capacitor 1.15		Appelez-nous	-
15	M0805106		Fuse, 10 Amp				$ 3.70
16	B8391701		Board, Fuse		Appelez-nous	-
20	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
21	M0251030		Screw		Appelez-nous	-
23	C8798804		Transformer, Filament		Appelez-nous	-
24	C8961702		Bracket		Appelez-nous	-
28	A4591129		Gasket K		Appelez-nous	-
30	B5696107		Bracket-line Filter		Appelez-nous	-
31	B8376701		Bracket, Light		Appelez-nous	-
32	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
33	B8390801		Washer		Appelez-nous	-
34	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
35	B5717801		Line Filter Xx		Appelez-nous	-
38	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
39	B8343707		Gasket		Appelez-nous	-
40	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
41	M0272803		Lock Washer		Appelez-nous	-
