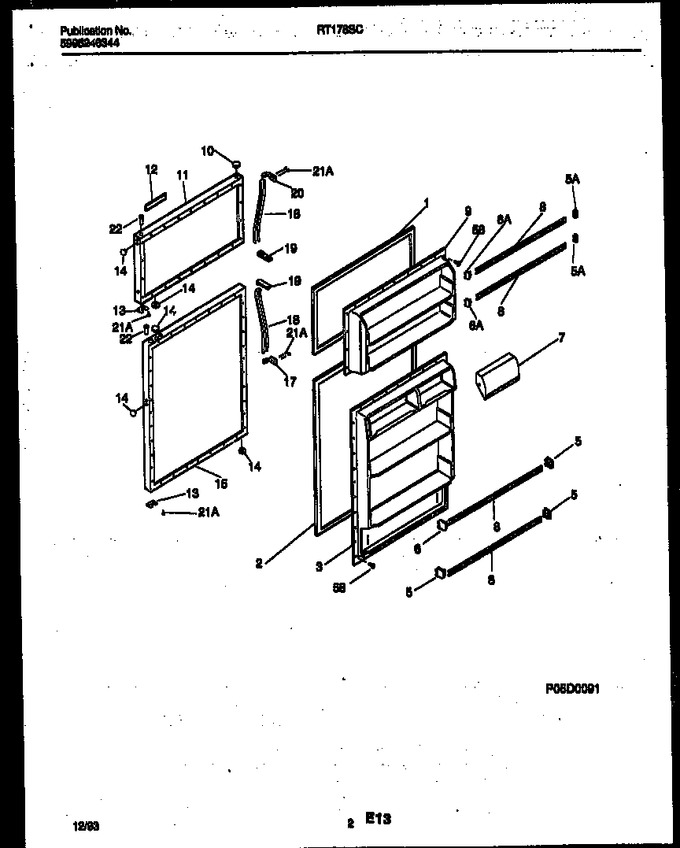

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, Magnetic, White |
|
$ 188.54 | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic, White (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 5303271592 | Panel-inner Door, Refr |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303288922 | Door-dairy, Rh |
|
- | |||||
| 8 | 5303288928 | Rack-door, (4) |
|
- | |||||
| 9 | 5303207236 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917156 | Panel-frzr Door, White |
|
- | |||||
| 12 | 215366401 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917154 | Panel-refr Door, White |
|
- | |||||
| 17 | 215364800 | Handle End |
|
$ 73.92 | |||||
| 18 | 5303015111 | Handle-door |
|
- | |||||
| 19 | 215365000 | Handle End, (2) |
|
- | |||||
| 20 | 215364900 | Handle End |
|
$ 108.52 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *85709 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340760 | Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated) |
|
- | |||||
| 18A | 5303279626 | Insert-handle Grip, White (non-illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303288923 | Door-dairy, Lh (non-illustrated) |
|
- |
