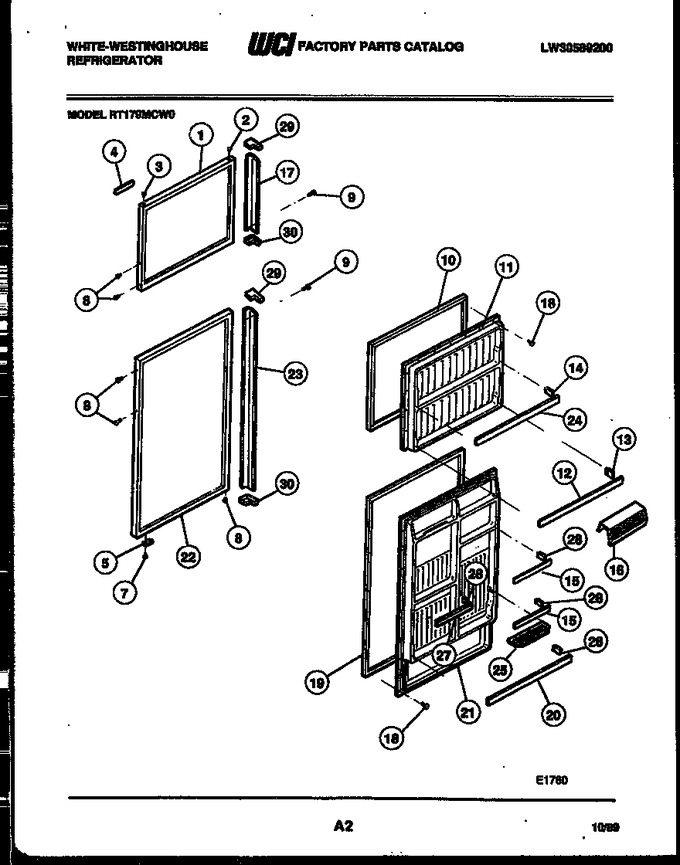

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916572 | Panel-freezer-almond |
|
- | |||||
| 2 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 3 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 4 | 3206159 | Nameplate |
|
- | |||||
| 5 | 08000255 | Door Stop (2) |
|
- | |||||
| 7 | G185566 | Screw |
|
- | |||||
| 8 | G162977-11 | Button Plug-almond |
|
- | |||||
| 9 | G185566 | Screw |
|
- | |||||
| 10 | 08007123 | Gasket-freezer |
|
- | |||||
| 11 | 3206138 | Panel-freezer-inner |
|
- | |||||
| 12 | 3206163 | Rack-freezer |
|
- | |||||
| 13 | 3206161 | Support-rack Rh |
|
- | |||||
| 14 | 3206165 | Support-rack Rh |
|
Immediately | $ 8.19 | ||||
| 15 | 3206191 | Rack-refr (2) |
|
- | |||||
| 16 | 3206149 | Door-dairy, Rh |
|
- | |||||
| 17 | 3206217 | Handle-freezer |
|
- | |||||
| 18 | G162585 | Screw |
|
- | |||||
| 19 | G186803-11 | Gasket-refrigerator |
|
- | |||||
| 20 | 3206152 | Rack-refrigerator |
|
- | |||||
| 22 | 3916604 | Panel-refrigerator-almond |
|
- | |||||
| 23 | 3206418 | Handle-ref |
|
- | |||||
| 24 | 3206164 | Rack-frzr |
|
- | |||||
| 25 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 26 | 3206150 | Support-rack-rh |
|
$ 12.58 | |||||
| 27 | 3206190 | Rack-refr |
|
- | |||||
| 28 | 3206165 | Support - Rack - Rh (3) |
|
Immediately | $ 8.19 | ||||
| 29 | G177142 | Handle End-top (2) |
|
- | |||||
| 30 | G000177143 | Handle End-bottom (2) |
|
- | |||||
| *23234 | G000179271 | Trim-handle End |
|
- | |||||
| *23234 | G000177144 | Clip-door Handle |
|
- | |||||
| *23234 | 3007739 | Insulation-fiberglass (bulk) |
|
- | |||||
| 13A | 3206162 | Support-rack-lh |
|
- | |||||
| 14A | 3206166 | Support-rack Lh |
|
Immediately | $ 9.93 | ||||
| 16A | 3206220 | Trim-rh Dairy Door (non-illustrated) |
|
- | |||||
| 16B | 3206222 | Door-dairy-lh (non-illustrated) |
|
- | |||||
| 16C | 3206221 | Trim-lh Dairy Door (non-illustrated) |
|
- | |||||
| 26A | 3206151 | Support-rack-lh |
|
- | |||||
| 28A | 3206166 | Support - Rack - Lh (3) |
|
Immediately | $ 9.93 | ||||
| 29A | G000177144 | Clip-door Handle |
|
- | |||||
| 29B | G000179270 | Trim-handle End (non-illustrated) |
|
- |
