SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

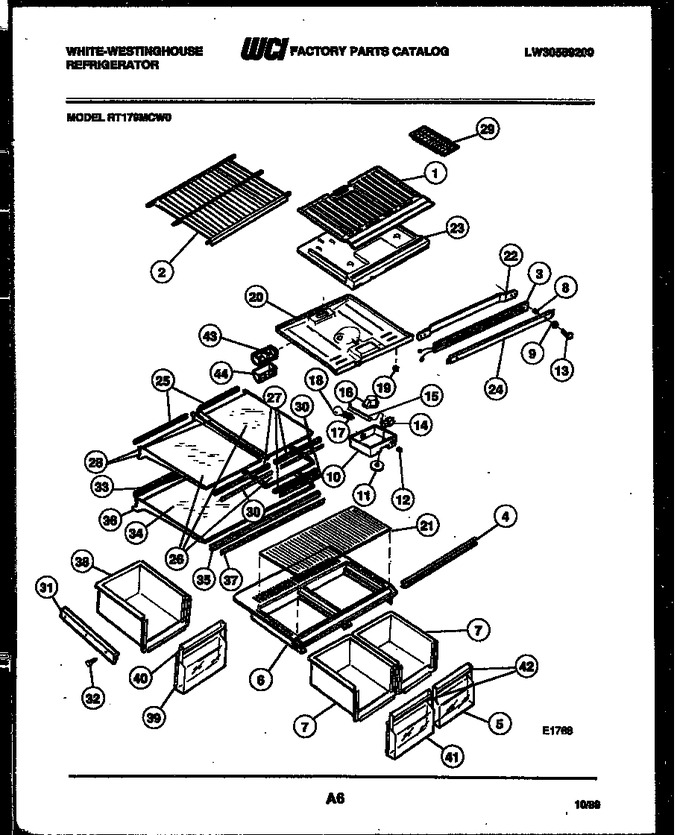

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206187		Bottom-freezer		Appelez-nous	-
2	3206353		Shelf-freezer		Appelez-nous	-
3	3206120		Heater-mullion		Appelez-nous	-
4	3206372		Trim-crisper Cover		Appelez-nous	-
5	3206354		Front-crisper Pan-rh		Appelez-nous	-
6	3206183		Cover-crisper		Appelez-nous	-
7	3206180		Pan-crisper, (2)				$ 155.70
8	3200464		Spacer-mullion (2)		Appelez-nous	-
9	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
10	3206130		Control Box		Appelez-nous	-
11	3201777		Knob-temperature Control		Appelez-nous	-
12	3206129		Switch-energy Saver		Appelez-nous	-
13	3206134		Screw-mullion (4)		Appelez-nous	-
14	3018894		Control-temperature		Appelez-nous	-
15	3018891		Housing, Cont Cap Tube		Appelez-nous	-
16	G187484		Timer-defrost		Appelez-nous	-
17	08000815		Light Socket		Appelez-nous	-
18	3001179		Light Bulb		Appelez-nous	-
19	09918806		Light Switch		Appelez-nous	-
20	3206185		Top-refrigerator		Appelez-nous	-
21	3206355		Insert-crisper Cover		Appelez-nous	-
22	G166709		Strap-mullion Mtg		Appelez-nous	-
23	3206186		Divider, Styrofoam		Appelez-nous	-
24	3206124		Mullion-coffee		Appelez-nous	-
25	3206413		Trim-rear Shelf Retainer (3)		Appelez-nous	-
26	3206415		Shelf-glass (3)		Appelez-nous	-
27	3206400		Retainer-glass (3)		Appelez-nous	-
28	3018880		Frame-half Shelf (2)		Appelez-nous	-
29	3001324		Ice Tray (2)		Appelez-nous	-
30	3206416		Trim-shelf (3)		Appelez-nous	-
31	3206379		Hanger-meat Pan-lh		Appelez-nous	-
32	08014528		Screw-hanger (6)				$ 4.31
33	3206374		Trim-rear Shelf Retainer-full Shelf		Appelez-nous	-
34	3206376		Shelf-glass-full Shelf		Appelez-nous	-
35	3206375		Retainer-glass-full Shelf		Appelez-nous	-
36	3203935		Frame-full Shelf		Appelez-nous	-
37	3206206		Trim-full Shelf		Appelez-nous	-
38	3206351		Pan-meat		Appelez-nous	-
39	3206210		Front-meat Pan		Appelez-nous	-
40	3206211		Trim-meat Pan		Appelez-nous	-
41	3206181		Front-crisper Pan-lh		Appelez-nous	-
42	3206213		Trim-crisper Pan (2)		Appelez-nous	-
43	3204206		Deflector - Air		Appelez-nous	-
44	G162178		Cover, Air Deflector		Appelez-nous	-
*23249	G170910		Clip-canti Shelf (8) (shipping)		Appelez-nous	-
10A	G187363		Screw		Appelez-nous	-
14A	G107080		Screw		Appelez-nous	-
16A	G105289		Screw		Appelez-nous	-
20A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
23A	3018900		Wiring Harness - Divider (non-illustrated)		Appelez-nous	-
23B	3205266		Protector-edge (2) (non-illustrated)				$ 80.09
26A	3200901		Rail-glass Support (6) (non-illustrated)		Appelez-nous	-
28A	3206401		Frame-meat Keeper Shelf		Appelez-nous	-
2A	3201150		Cap-protector (2) (non-illustrated)				$ 4.57
2B	3206203		Trim-shelf (non-illustrated)		Appelez-nous	-
2C	3001609		Grommet-shelf Mtg-rh (4) (non-illustrated)		Appelez-nous	-
2D	08009759		Grommet-shelf Mtg-lh (4) (non-illustrated)		Appelez-nous	-
31A	3206380		Hanger-meat Pan, Rh		Appelez-nous	-
34A	3200901		Rail - Glass Support (2) (non-illustrated)		Appelez-nous	-
