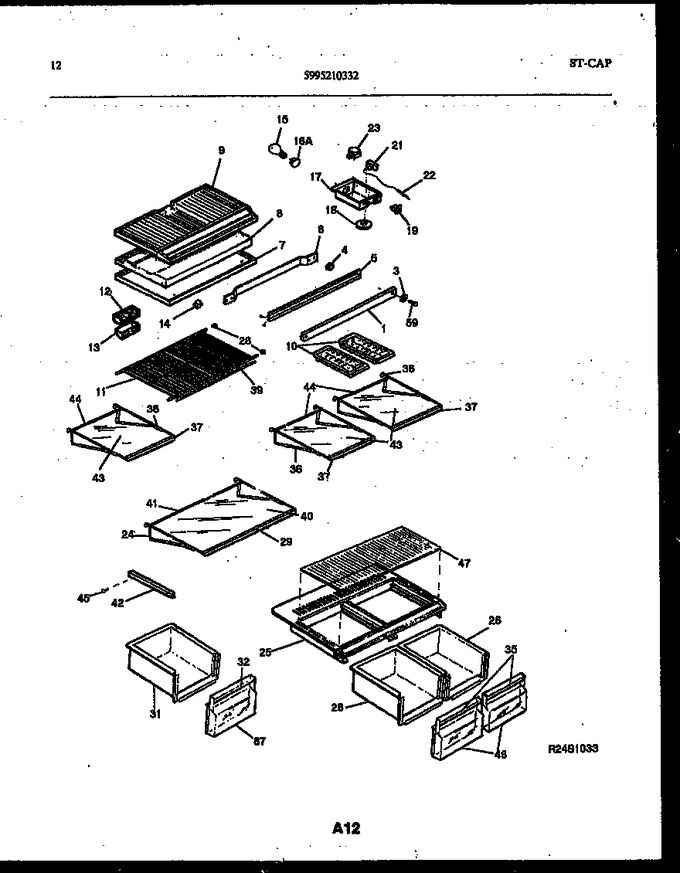

RT179NCD0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
23	215846602	Timer (Replaces: 5300187484)		Immediately	$ 28.20
24	3203935	Frame-full Shelf, Cantilever	Appelez-nous	-
25	3206183	Cover-crisper Pan, With Beam, Less Insert	Appelez-nous	-
26	3206180	Pan-crisper, (2)			$ 155.70
28	3201150	Cap-protector			$ 4.57
29	5303209641	Trim-refr Shelf, (3)	Appelez-nous	-
31	3206351	Pan-meat	Appelez-nous	-
32	5303209218	Trim-meat Pan	Appelez-nous	-
35	5303209226	Trim-crisper Pan, (2)	Appelez-nous	-
36	3206401	Frame-meat Kpr Shelf, Cantilever	Appelez-nous	-
36	3018880	Frame-half Shelf, Cantilever, (2)	Appelez-nous	-
37	3206416	Trim-half Shelf, (3)	Appelez-nous	-
39	3206203	Trim-frzr Shelf	Appelez-nous	-
40	3206376	Shelf-glass-full Shelf	Appelez-nous	-
41	3205268	Trim-full Shelf, Rear	Appelez-nous	-
42	3206380	Hanger-meat Pan, Rh	Appelez-nous	-
43	3206415	Shelf-glass, Half Shelf, (3)	Appelez-nous	-
44	3205270	Trim-half Shelf, Rear, (3)	Appelez-nous	-
45	08014528	Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P			$ 4.31
46	3206181	Front-crisper Pan-lh	Appelez-nous	-
46	3206354	Front-crisper Pan-rh	Appelez-nous	-
47	5303271945	Insert-crisper Cover, Glass	Appelez-nous	-
59	3206134	Screw-hng/mull Mtg,acorn Hx Wsh Hd,10-24(23)x1	Appelez-nous	-
67	3206210	Front-meat Pan	Appelez-nous	-
23A	5304455649	Screw (Replaces: 5303001259)			$ 17.01
24A	3200901	Rail-glass Support (non-illustrated)	Appelez-nous	-
24B	3206375	Retainer-glass (non-illustrated)	Appelez-nous	-
24C	5300170910	Clip-cantilever Shlf (non-illustrated)			$ 2.60
25A	3206372	Trim-crisper Cover (non-illustrated)	Appelez-nous	-
36A	3206400	Retainer-glass, (3) (non-illustrated)	Appelez-nous	-
42A	3206379	Hanger-meat Pan-lh	Appelez-nous	-
